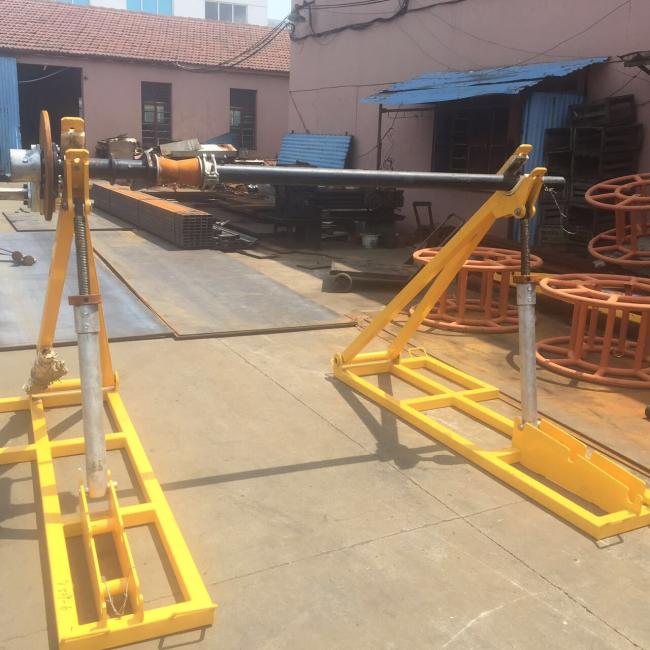

Hydraulic Condrulic Conductor Reel Stand to Connect with Hydraulic Tensioner puller
Price:
US $400-1,500 / Set
MOQ:
1 set
Delivery Time:
15 work days after deposit
Brand:
Shenhong
Product Description
Large Capacity Hydraulic Condrulic Conductor Reel Stand to Connect with Hydraulic Tensioner puller through quick coupling
Notes:Connect with hydraulic tensioner or hydraulic puller tensioner through quick coupling.
| Model | SIYZ10 | SIYZ15 | |
| Applicable reel | Diameter of coil(mm) | Φ2000-3000 | Φ2000-3800 |
| Max width of coil(mm) | 1700 | 1950 | |
| Diameter of axle hole(mm) | Φ125-130 | ||
| Maximum Weight(kg) | 10000 | 15000 | |
| Max Working Torque(N.m) | 3300 | 4500 | |
| Max Speed(rpm) | 45 | 45 | |
| Axle diameter(mm) | Φ94 | Φ119 | |
| Weight(kg) | 597 | 789 | |
| Length of hydraulic tube(m) | 15 | 20 | |
