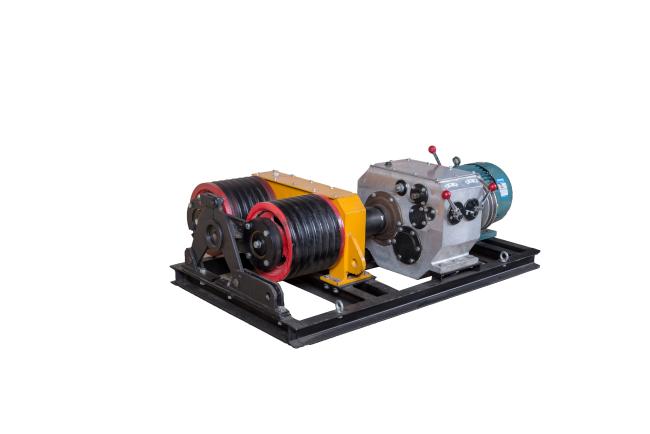

50KN Double Drum Electric Power Cable Pulling Tools Winch With 6 Groove
Manufacturer 50KN Double Drum Electric Power Cable Pulling Winch
Application
It is applied to an under construction set of electric power, post and tele wire ways to tower group sets up the pole, and to use in the wild non-transformer station, it will be convenient and agility. It is used to erect pole pylon , haul and string conductors in post telephone, telegraph and electric power lines .
Quick details
1. Transimission line stringing tools
2. Dual-bull wheel powered winch
3. Groove number: 6
4. Pull force: 50KN
5. weight: 280kg
Features
The whole machine is mounted on a framework with wheel hub for easy transportation.
Technical data
| Model | JJM-5SD | |||||
| Engine | Electric Engine | |||||
| Power | 3.6KW | |||||
| Suitable Wire Rope(mm) | 15 | |||||
| Bottom diameter of Groove(mm) | 240 | |||||
| No. Of Groove | 6 | |||||
| Gear | Forward | Reverse | ||||
| Slow I | Slow II | Fast I | Fast II | Slow | Fast | |
| Pull Force(KN) | 50 | 30 | 13 | 10 | No lifting | No lifting |
| Speed(m/min) | 6 | 10 | 23 | 30 | 5 | 17 |
| Weight(KG) | 280 | |||||
| Dimension(mm) | 1330×800×600 | |||||
Shipment
1. The machine will be shipped in container
2. We will ship the products within one month normally after receiving the payment.
3. Stock is available for standard product.
Payment
1. We accept T/T and L/C.
2. Please send swift copy of T/T if you arrange payment by T/T
3. Please send us the L/C draft to us before issue L/C.
