Manual Battery Powered Hydraulic Cable Lug Crimping Tool 16 - 400m2
Manual Battery Powered Hydraulic Cable LugCrimping Tool Hydraulic Crimping Tool 16-400m2
Product Application
Micro computer control system-automatically detects the pressure when it crimping with double safety protect.
The too is equipped with a double piston pump which characterized with a fast approach towards the connecting material and transfer to high pressure automatically by slow crimping.
Specification
|
Crimping force: |
130kN |
||
|
Crimping range: |
16-400mm2 |
||
|
Stroke: |
42mm |
||
|
Crimp/Charge: |
120times(CU150mm2 |
||
|
Crimping cycle: |
10-20S |
||
|
Voltage: |
18V |
||
|
Capacity: |
3,0Ah |
||
|
Charging time: |
45mins |
||
|
Package: |
Plastic case |
||
|
ACCESSORIES |
|
||
|
Crimpingdie: |
16.25.35.50.70.95.120.150.185.240.300.400 |
||
|
Battery: |
2pcs |
||
|
Charger: |
1pc(AC110-240V,50-60HZ) |
||
|
Sealing ring of cylinder: |
1set |
||
|
Sealing ring of safety valve: |
1set |
||
Main Features
1) Oled Display(crimp times,pressure,voltage).
2) Led light.
3) Emergency ressure release button.
4) One key control-press the trigger to start working.
5) LI-ion lower power weight ratio eith 50% more capacity and shorter charging cycles.

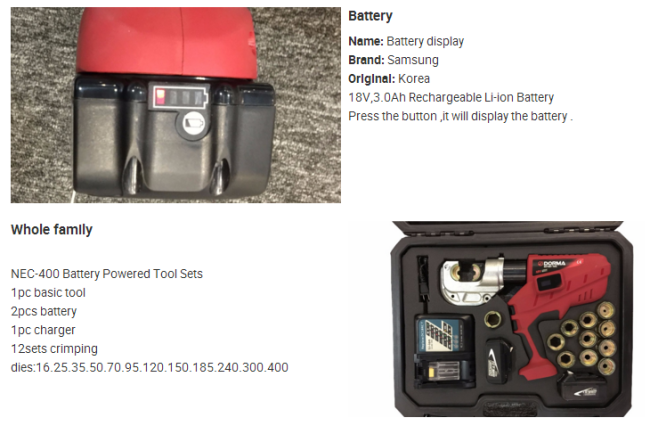

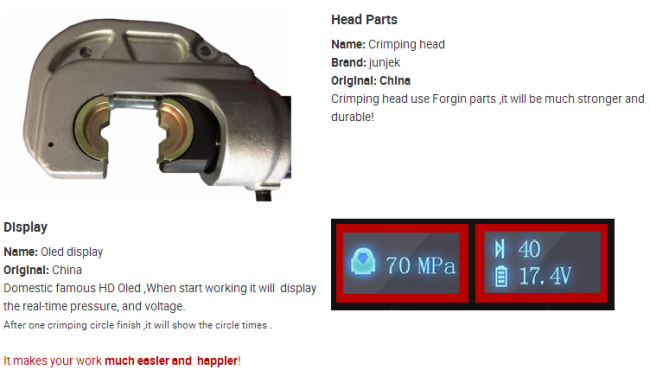

Detailed Images
Packing & Delivery
|
Packaging |
|
|
Size |
552*452*152mm |
|
Weight |
18kgs /set |
|
Packaging Details |

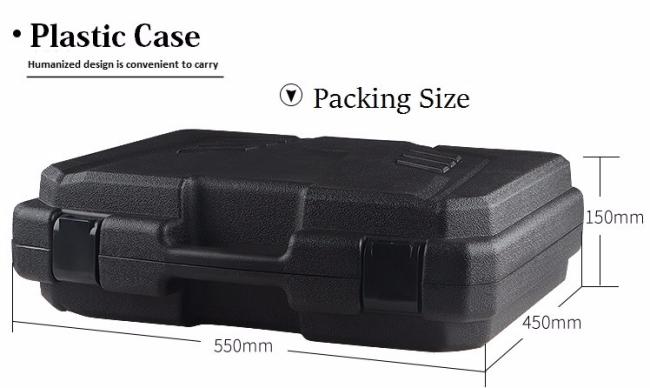

1set/ carton The normal inner packing is plastic case (550x450x150mm) The normal outer packing is carton(552*452*152mm) |
