Max Up To 400mm2 12T 65mm Cable Hydraulic Crimping Tool
Price:
negotiation
MOQ:
1set
Delivery Time:
7days after payment
Brand:
SHENHONG
Product Description
Hydraulic Crimping tool Crimper Hydraulic Plier EP-430H 12TMax up to 400mm2
Features:
1)The compression pliers are designed for hydraulic crimping on power cable and wire. The crimped conductor is tested in high conductivity and close contact so that it's uneasy to break out and turn hot .
2)Open cut design for convenient operation.
3)The head could be rotated 180° freely for narrow space working.
4) Standard die assembling 50, 70, 95, 120, 150,185,240,300,400mm2
5) The oil pipe coupler fitted with PT 3/8'' thread

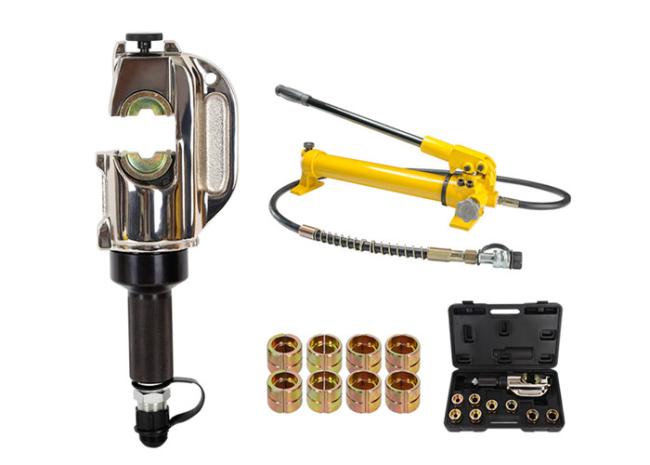

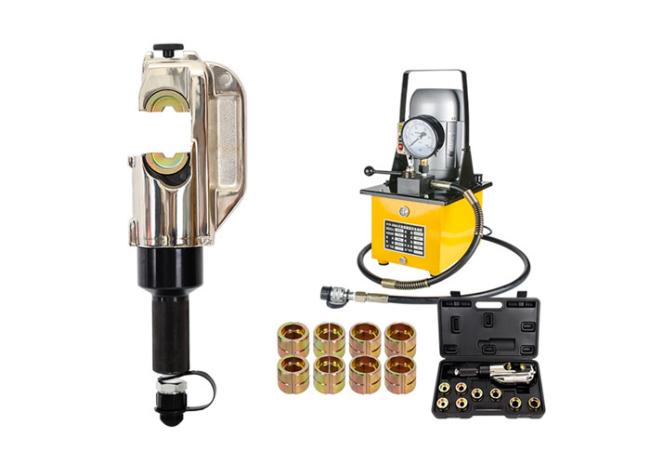

6) To be worked with pedal pump, manual pump and electric driven hydraulic pump.
Data Sheet
| Item No. | EP-430H |
| Output | 12ton |
| Stroke | 30mm |
| Crimping Type | Hexagon Crimping |
| Crimping Range | 50-400mm2 |
| Mould | 50,70,95,120,150,185,240,300,400mm2 |
| Size | 340x110x65mm |
| Weight | 4.5kg |
