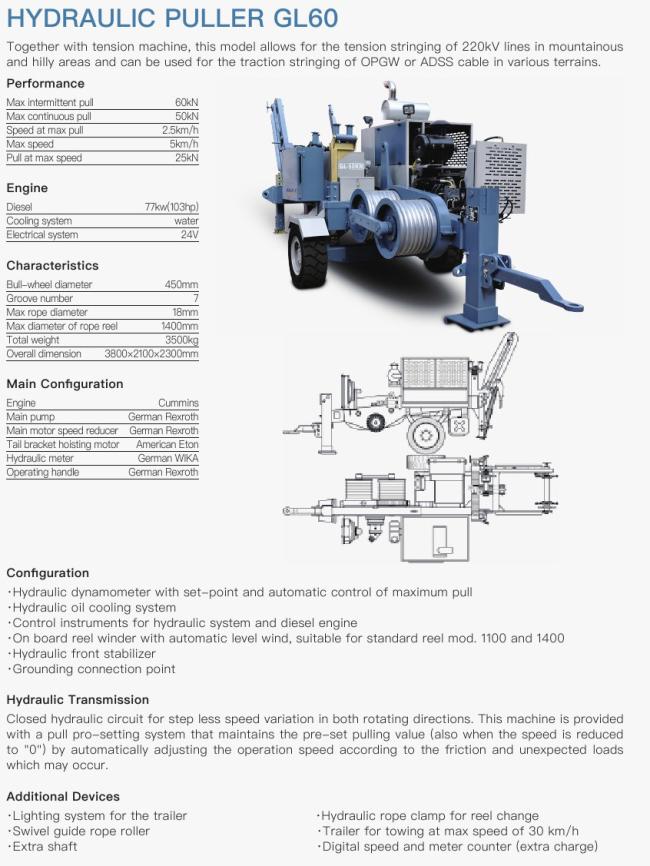

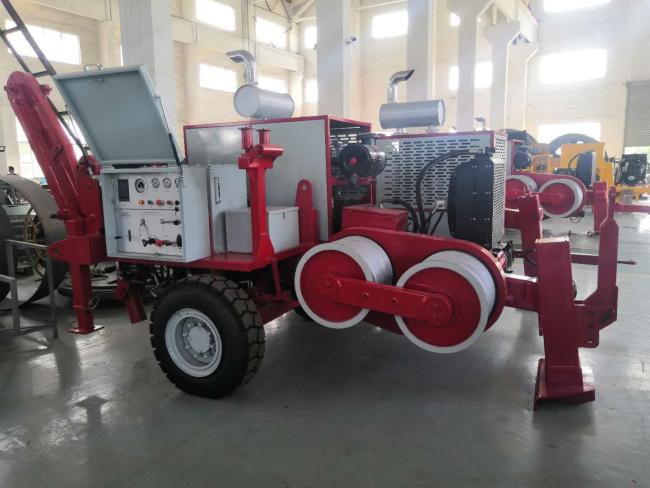

60KN Hydraulic Cable Puller For Transmission Overhead Line
60KN Stringing Equipment Hydraulic Cable puller Machine For Transmission Overhead Line
Products Description
Together with tension machine, this model allows for the tension stringing of 220kV lines in mountainous and hilly areas and can be used for the traction stringing of OPGW or ADSS cable in various terrains.
* Hydraulic oil cooling system
* Control instruments for hydraulic system and diesel engine.
* On board reel winder with automatic level wind, suitable for standard reel mod.1400
* Hydraulic front stabilizer
* Grounding connection point
PRODUCT SPECIFICATIONS
Main configuration
* Engine: Cummins
* Main pump: German Rexroth
* Main motor speed reducer: German Rexroth
* Tail bracket hoisting motor: America Eton
* Hydraulic meter: German WIKA
* Operating handle: German Rexroth
|
Model |
|
GS 40 |
GS 60 |
GS 90 |
GS 180 |
GS 220 |
GS 280 |
GS380 |
|
Max intermittent pull |
KN |
40 |
60 |
90 |
180 |
220 |
280 |
380 |
|
Max continuous pull |
KN |
30 |
50 |
80 |
150 |
180 |
250 |
350 |
|
Speed at max pull |
km/h |
2.5 |
2.5 |
2.5 |
2.5 |
2.5 |
2.5 |
2.5 |
|
Max speed |
km/h |
5 |
5 |
5 |
5 |
5 |
5 |
5 |
|
Pull at max speed |
KN |
20 |
25 |
40 |
75 |
90 |
120 |
170 |
|
Diesel |
kw(hp) |
77(103) |
77(103) |
118(158) |
239(320) |
239(320) |
298(400) |
440(590) |
|
Cooling system |
|
Water |
Water |
Water |
Water |
Water |
Water |
Water |
|
Electrical system |
V |
24 |
24 |
24 |
24 |
24 |
24 |
24 |
|
Bull-wheel diamete |
mm |
400 |
450 |
540 |
700 |
760 |
960 |
960 |
|
Groove number |
|
7 |
7 |
8 |
10 |
10 |
11 |
11 |
|
Max rope diameter |
mm |
16 |
18 |
21 |
27 |
30 |
38 |
38 |
|
Max diameter of rope reel |
mm |
1200 |
1400 |
1400 |
1400 |
1600 |
1600 |
1900 |
|
Total weight |
kg |
3000 |
3500 |
4680 |
6800 |
6800 |
12800 |
13600 |
