1-500Kg Capacity Digital Type Peel Adhesion Test Equipment With 180 Degree Peel Adhesion Tester
1-500Kg Capacity Digital Type Peel Adhesion Test Equipment With 180 Degree Peel Adhesion Tester
Application :
Peel Adhesion Test Equipment is equipped with different jig can test the adhesive tape, stickers trademark products 90 degree peel strength and stripping strength 180 degree, mold testing
Interface to allow for tape adhesion performance of products.And can test tensile strength of base material.Other: this instrument can be operated through the software editor, can do pressure, tensile test, etc.
Minimum test precision testing:
0.5 g / 25 mm, to tape, protective film, release paper, from type membrane electronic material industry such as improve the quality of the product.
Standards:
ASTM D3330 FINAT GB/T2792 PSTC
Technology Parameters:
| capacity | 1-500 kg |
| Precision grade | 0.5 grade |
| Maximum load | 500 kg (within 500 kg can be arbitrarily change) |
| Effective load range | 0.02/100-100% |
| Test force resolution | maximum load 250000 yards; Not step inside and outside, and the entire resolution remains the same |
| Effective test width | 100 mm |
| Effective tensile space | 650 mm |
| The test speed |
0.01 to 500 mm/min |
| Speed accuracy | the value plus or minus 0.5% |
| Displacement measurement accuracy | the value plus or minus 0.5% |
| Acquisition method of induction | the high precision sensor |
| Control system | servo motor servo driver |
| Software measurement and control system | digital closed loop control system, which can realize constant stress, constant strain, constant displacement, the test function |
| try lifting gear |
computer digital control/manual point dynamic control |
| Automatic software test platform safety protection device | diagnosis, electronic limit |
| Regression test | can manual top speed back to test the initial position and automatic can automatically return at the end of the test |
| Overload protection | maximum load value can be set, automatic protection |
| Tooling/fixture configuration | according to customer's product sample requirements |
| A set of matching devices | brand lenovo LCD computer |
| Motor | 400 w |
| Host | weight about 55 kg |
RFQ:
Why choose us?
1. Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.
2. Excellent after sale service:
1 YEAR warranty. If you have any problems during testing process, we promise we will give you a reply with 24 hours and solution provide within 3 working days. What you need to do is to send us the controller.
3. Good Packaging:
Covered with air bubble film before put the machine into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.

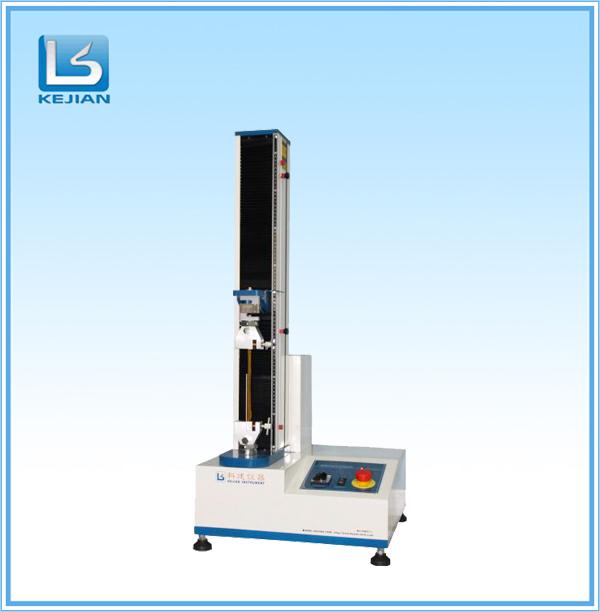

Pictures:
