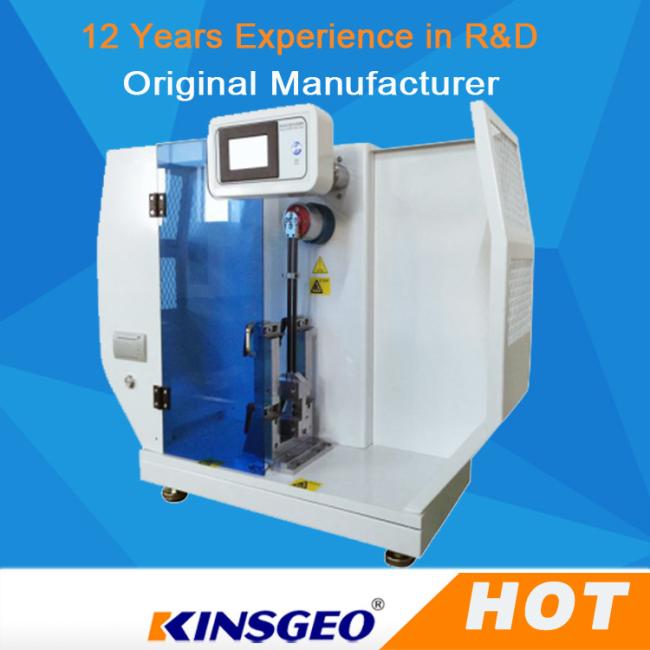

560* 300* 840mm 150 Degree Electronic LCD Touch Izod Impact Testing Machine for Plastic

Price Negotiable

Price: Negotiate

MOQ: 1 set

Delivery Time: In stock,3-7 working days after order confirmed

Brand: KEJIAN

Product Description

**560* 300* 840mm 150 Degree Electronic LCD Touch Izod Impact Testing Machine for Plastic**

Uses:

This machine is used for testing the impact strength of engineering plastic, FRP, ceramic, cast stone, plastic electrical appliance, insulation material, plastic pipe etc.

The pendulum arm used in the instrument is a kind of new material stronger than steel and lighter than aluminum (patent pending).

Characteristics:

English characters LCD shows the results, the storage of test results, and has the energy loss to be automatic correction function. Simple structure, convenient operation, data accurate and reliable.

Designing standard:

GB/T1843, ISO179---92, ISO180, GB/T21189, GB/T2611, JB/T8761

Specification

Mode:	KJ-XB5.5	KJ-XB22
Impact speed:	3.5m/s
Pendulum energy:	1.0J,2.75J,5.5 J	11J 22J
Pendulum angle:	150degree
Impact center distance:	335mm
Accuracy:	±0.1%
Resolution:	1%
Distance between impact blade and clamp mouth	22.0mm±0.2mm
Blade fillet radius	R=0.8mm±0.2mm
Energy loss:	1.0J—2%;2.75J—1%;5.5J—0.5%	11J,22J—0.5%
Specimen type:	Best type of specimen is 1 type.
Need the space:	Front and back 0.4m,left and right 1.5m,head 1.5m
Power:	(220-15%~220+10%)VAC 50HZ 0.1KW

Digital izod impact testing equipment standard configuration

Item	Name	Quantity	Unit	Remark
Host	Impact testing machine	1	set
Attached	1J ballistic pendulum	1	set
	2.75J impact weight	1	couple
	5.5J impact weight	1	couple
	model	1	piece
	wrenth	1	set
