Straw Fiber Horizontal Baling Machine(NKW100BD)

Price Negotiable
Price: Negotiable
MOQ: 1
Delivery Time: 10-30 days
Brand: NKBALER
Product Description

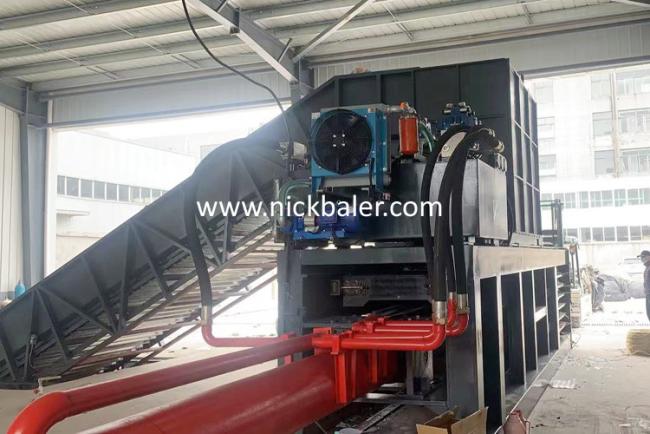

NKW100BD straw fiber horizontal baler is an advanced agricultural machinery and equipment, mainly used for fast and efficient bundling of various crop straws and fibers. The machine adopts a horizontal baling method, which can compress straw, fiber and other materials into regular rectangular or square blocks for easy transportation and storage.

Model NKW100BD
Hydraulic power 100Ton
Cylinder size Ø220
Bale size(W*H*L) 1100*850*1700mm
Feed opening size(L*W) 1400*2000mm
Bale density 400-450Kg/m3
Capability 3-5T/hour
Bale line 4 Line /Manual strapping
Power 30KW/40HP
Out-bale way Disposable bag out
Bale-wire 10#*4 PCS
Cooling system Cooling Fan
Feeding Device cyclone / conveyor
Machine weight 14000KG



Conveyor 12000mm*1800mm (L*W) 4.5KW
Conveyor weight 4500kg
Cooling system Water cooling /oil chiller

NKW100BD straw fiber horizontal baling machine has the characteristics of compact structure, easy operation and convenient maintenance. Its main working principle is to drive the compaction device through the hydraulic system to compact the straw, fiber and other materials sent into the baling chamber, and then bundle them into blocks through the binding device. The whole process is highly automated, which greatly improves production efficiency.
In addition, the NKW100BD straw fiber horizontal baler also has good environmental performance. Through the recycling of agricultural waste such as straw and fiber, environmental pollution can be effectively reduced and sustainable agricultural development promoted. At the same time, the baled straw, fiber and other materials can also be reused as biomass energy, feed and other resources to achieve resource recycling.


In short, the NKW100BD straw fiber horizontal baler is an efficient, environmentally friendly, and practical agricultural machinery and equipment, which is of great significance for improving agricultural production efficiency, protecting the environment, and promoting sustainable agricultural development.
