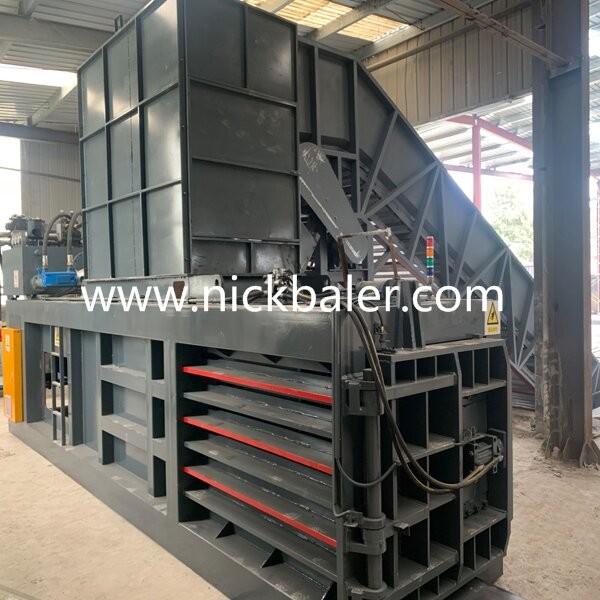

Carton Box Baling Press

Price Negotiable
Price: Negotiable
MOQ: 1
Delivery Time: 10-30 days
Brand: NKBALER
Product Description

Carton Box Baling Press is an environmentally friendly equipment specially used to compress paper packaging materials such as waste cartons and cardboard. Through the powerful pressure of the press, these materials can be compressed into blocks or squares, thereby significantly reducing their volume and making them easier to recycle and transport.

Model NKW160BD
Hydraulic power 160Ton
Cylinder size Ø280
Bale size(W*H*L) 1100*1250*1700mm
Feed opening size(L*W) 2000*1100mm
Bale density 600-650Kg/m3
Capability 6-8T/hour
Bale line 7Line /Manual strapping
Power/ 37.5KW/50HP
Out-bale way Disposable bag out
Bale-wire 6#/8#*7 PCS
Machine weight 19000KG



Conveyor 12000mm*2000mm (L*W) .4.5KW
Conveyor weight 5000kg
Cooling system Water cooling

The machine is usually driven by a hydraulic system to ensure sufficient power for compression operations. It includes main components such as feeding device, compression chamber, hydraulic system, electrical control system and discharging device. During operation, the staff puts the discarded cartons into the feed port, and the compression plate inside the machine will exert pressure on the cartons driven by the hydraulic cylinder, compressing them into a preset size and shape. When the compression is complete, the compressed paper blocks can be removed from the machine through the discharge device for further processing or directly to the recycling station.


Carton baling press plays an important role in the waste paper recycling industry. It not only improves the processing efficiency of waste cartons and reduces the amount of landfill, but also helps save resources and protect the environment. In addition, this machine is also suitable for other types of compressible materials, such as plastics, textiles, etc., and is one of the indispensable equipment in the modern environmental protection industry.
