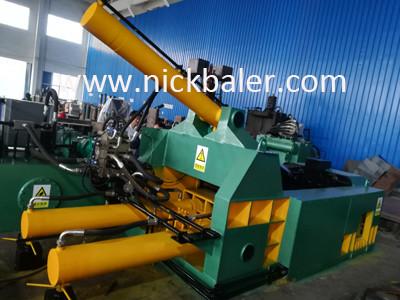

Scrap Metal Press Machine

Price Negotiable
Price: Negotiable
MOQ: 1
Delivery Time: 10-30 days
Brand: NKBALER
Product Description

Scrap Metal Press Machine is a piece of equipment used to compress and shape various scrap metal and scrap steel materials. It uses strong pressure to compress loose scrap metal materials into blocks of fixed shapes and sizes for easy transportation, storage and reuse. Scrap metal briquetting machines are widely used in scrap recycling stations, metal smelters, machinery manufacturing and other industries.

No Item Unit Parameter Note
1 Intended push force Main cylinder KN 1250
    Side cylinder KN 950
2 Max working force MPa 25
3 Chamber size length mm 1200
    width mm 700
    high mm 600
4 cylinder journey main cylinder mm 500
    Side cylinder mm 950
5 bale size length mm 250~350
    width mm 250
    high mm 250
6 Bale density   Kg/m³ ≥1800
7 single cycle time S ~120
8 Pump voltage MPa 31.5
    Runoff Ml/r 63
    Model 63YCY14-1B Quantity 1
9 Motor power KW 15
10 Machine size length mm 3780
    width mm 2200
    high mm 1900
This model is export model, it is Integer and use quickly valve ,it needn’t installation.

The working principle of the scrap metal briquetting machine is: put the scrap metal materials into the hopper of the briquetting machine, and compress the scrap metal materials into blocks through the pressure generated by the hydraulic system. The size and shape of the briquettes can be adjusted according to actual needs. Compressed scrap metal blocks can greatly reduce transportation costs, improve smelting efficiency, save energy, and reduce environmental pollution.
Scrap Metal Press Machine has the following features:
1. Compact structure, small footprint and easy installation.
2. Hydraulic drive, high pressure and good compression effect.
3. Simple operation, convenient maintenance and long service life.
4. Briquetting machines of different models and specifications can be customized according to customer needs.
5. Energy saving and environmental protection, reducing production costs and improving economic benefits.


In short, the Scrap Metal Press Machine is an efficient, energy-saving and environmentally friendly equipment, which is of great significance for scrap metal recycling and reuse.
