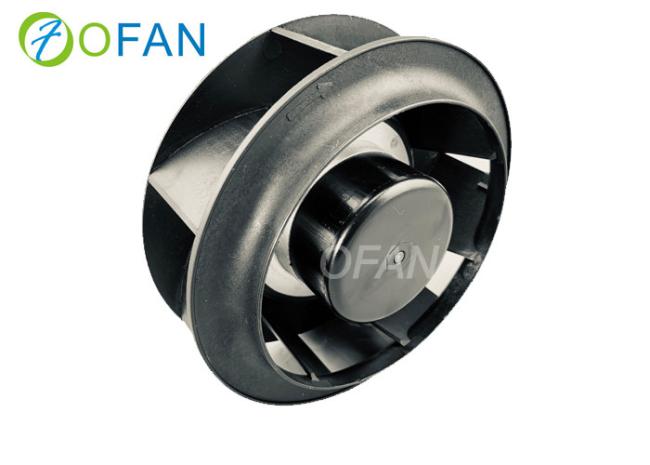

High Efficiency 24V Backward Inclined Centrifugal Fan 2500RPM

A. Motor speed is not affected by power frequency
B. Speed range is big
C. the motor is stepless speed
D. starting moment is big
E. motor high efficiency range is big
F. the volume is very compact.
G. motor efficiency is high(>80%)

Specifications:

Model Number:LD225N-24D3-00

Rated Voltage:24V

Rated Speed:2500RPM

Power:96w

Rated Current:4A

Air Flow:1000m³/h

Material:PA66

Type of protection: IP44

Approvals: CCC CE

Insulation class:B

Ball bearing:NSK

Constant torque ,constant speed and constant airflow of EC fan can be fulfilled via 180,sine SVPWM(Space Vector PWM)to meet customer needs

Intelligent EC fan can support users to realize centralized operation control by 485 bus and monitor as many as 255 fans

EC fan has comprehensive protection function, such as phase failure, overvoltage, undervoltage, locked-rotor, over current and temperature protection

The applicable ambient temperature of the fan motors used in condenser is from -30~60

The average service life of motors is over 30000 hours

Our products have got CCC certificate and CE certificate
