50MIC RON PVC Heat Shrink Film For Reverse Printed Shrinkable Labels
50MICRON PVC Heat-shrink Plastic Film For Reverse Printed Shrinkable Labels
Shrink Films entails placing a pre-printed plastic sleeve onto a container and then applying heat to the plastic film (typically thickness of 40 - 60 microns) so that the film shrinks to the shape of the bottle. The technology of shrink sleeving has been around for over forty years and has come a long way since then; mainly due to the innovative properties of modern day plastic film.
1. Product Specifications
1) Thickness: 35mic, 40mic, 45mic, 50mic
2) Width: 350mm - 1000mm
3) Length: 1000m - 3000m
4) The shrinkage: 45% - 53%
5) Can provide free samples of 150m - 200m.
2. Technical Data Sheet
| NO. | Properties | Unit | Test Standard | Test Method | |
| 1 | Width | mm | (Order Sheet standard)0-3 | --- | |
| 2 | Thickness Max tolerance | % | ±12% | ASTM D 374 | |
| 3 | Tensile Strength | MD | N/mm2 | ≥42 | ASTM D 882 |
| TD | N/mm2 | ≥50 | ASTM D 882 | ||
| 4 | Elongation at Break | MD | % | ≥70 | ASTM D 882 |
| TD | % | ≥50 | ASTM D 882 | ||
| 5 | Shrinkage | MD | % | Order Sheet standard±2.5 | ASTM D 1204 |
| (100°C,8 Seconds) | TD | % | Order Sheet standard ±2.5 | ASTM D 1204 | |
| 6 | Friction Coefficient | --- | ≤0.5 | ASTM D 1894E | |
3. Features
1) Totally dust free.
2) Excellent printability.
3) Strong & flexible films.
4) Excellent dimensional stability.
5) Perfect machine-ability even with high speed machines.
6) Uniform & Consistent Shrink Properties to enable360 degree graphics suitable for printed sleeves/labels.
7) Films designed for Full-body sleeve labels, Promotion packs, Multi-packs & Tamper-evident closures.
8) Suitable for Manual, Poll-fed & Shrink wrap-around labels.
4. Advantages
1) High clarity.
2) Excellent shrinkage control.
3) Very good lay-flat properties.
4) Excellent product presentation.
5)The low heat required during packing.
6) Good shrinking using small or big heat tunnel.

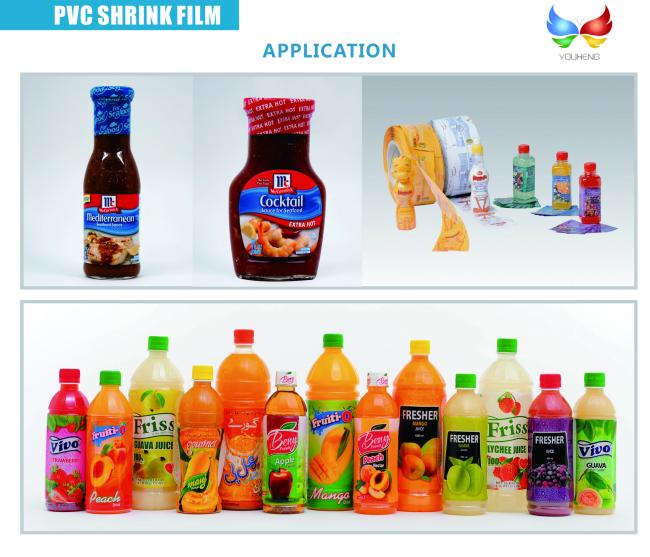

4. Usage
1) For full-body sleeves, shrink sleeves and tamper-evident bands.
2) For wrap-around, pressure-sensitive, and roll-on shrink on labels.
3) For shrink-wrap multi-packs packaging.
4) Custom made available for PVC Bag, PVC Roll, PVC Sheet & PVC Tubing.

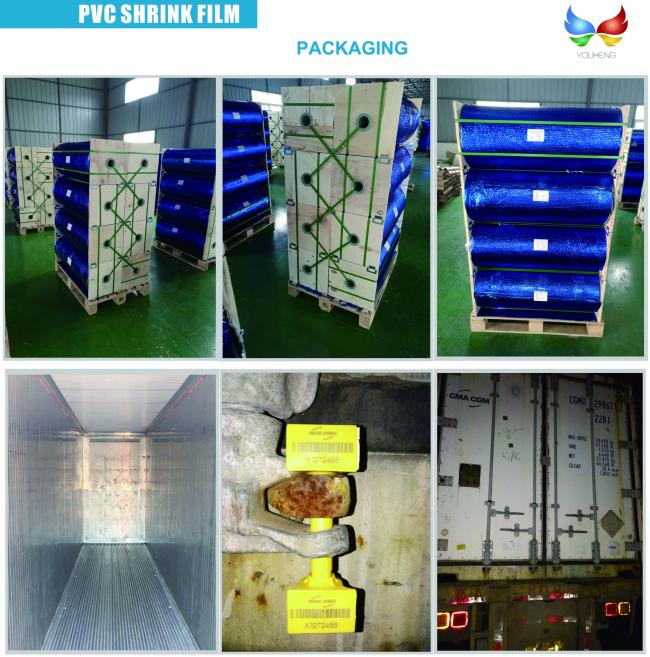

5. Package Of PVC Shrink Film

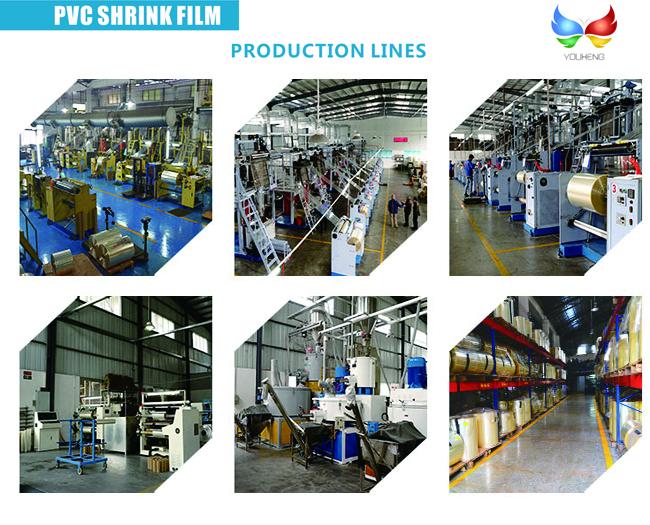

6. Production Lines
7. FAQ
1) What is your MOQ?
--- Normally our MOQ for each size is 1ton. If you think it is too much, we can discuss according to your requirement in details.
2) Can you offer free sample?
--- Yes, we can provide free samples of 150m - 200m.
3) What is your delivery time?
--- We will deliver in 15-20 work days
4) Can you accept mixed products in one container?
--- Yes, we accept for sure.
