40Mic Waterproof 60 - 70 % PETG Shrink Film Gloss Surface Finish For Drink Packaging
40Mic Waterproof 60 - 70 % PETG Shrink Film Gloss Surface Finish For Drink Packaging
1. Product Details Of PETG Shrink Film

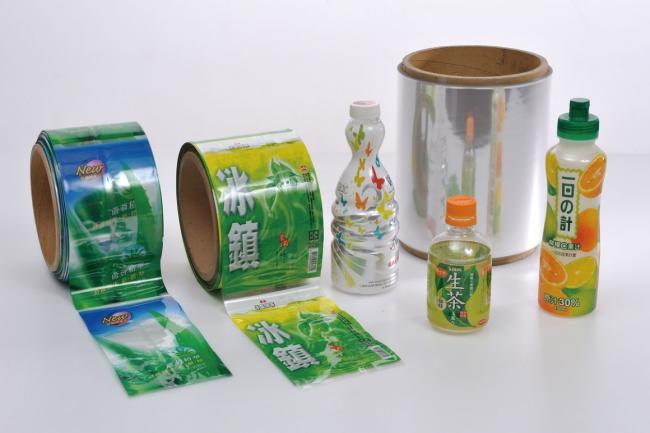

The shrink sleeves & labels by the mean of heating averagely can fit various bottles. Using shrink labels provides an opportunity to decorate the container with some very eye-catching designs. It also provides more printing space for promotional and brand-reinforcing messages since the label can be printed the entire 360 degrees. By the way, PET/PETG is considered to be a green or environmentally friendly, We have the mature professional ability to supply film.
2. Product Specifications Of PETG Shrink Film
1) Thickness: 20mic - 80mic
2) Width: 450mm - 1000mm
3) Length: 2500m - 5000m
4) The shrinkage: 60% - 70%
5) Can provide free samples of 150m - 200m.
3. Product Parameter Of PETG Shrink Film
| Item | Unit | Typical Value | Testing Method | |||
| Thickness | mic | 40, 45, 50, 60 | ASTM D374 | |||
| Thickness Tolerance | % | ±3 | ||||
| Material Yield | m²/kg | － | ||||
| 40mic | 18.9 | |||||
| 45mic | 16.8 | |||||
| 50mic | 15.2 | |||||
| 60mic | 12.6 | |||||
| Tensile Strength | MD | Mpa | 50 | ASTM D882 v=100mm/min |
||
| TD | 240 | |||||
| E-Modulus | MD | 1900 | ||||
| TD | 4300 | |||||
| Elogation At Break | MD | % | 430 | |||
| TD | 39 | |||||
| Heat Shrinkage | MD | % | 1 | ASTM D 1204 90℃/10Sec/Water |
||
| TD | 65 | |||||
| C.O.F | us | － | 0.485 | ASTM D1894 E | ||
| uk | 0.43 | |||||
| Haze | % | 3.65 | ASTM D1003 | |||
| Gloss(45°) | － | 110 | ASTM D2457 | |||
| Dyne | mN/m | 40 | ASTM D2578 | |||
| Density | g/cm³ | 1.32 | ASTM D792 | |||
4. Characteristics For PETG Shrink Film
1) Broad Range of Shrink Properties Available – Low through High Shrinkage
3) GreatConvertability – These films have a uniform thickness and are dimensionally stable. We manufacturer high-performance shrinkable films that work very well in the printing, slitting, sealing and labeling processes. Post processing, these films maintain their profile which results in an outstanding finished product.
4) Superb Stability at Room Temperature – These films will not shrink when stored, or transported at room temperature thus saving on special transport, or cooling bills.
5) High-Temperature Resistant – At high processing temperatures, the stable characteristics of these films are evident. Whether used as a label, or cap seal the end product is one that can be depended on to meet, or exceed expectations of quality.
6) Low Natural Shrinkage – This characteristic results in easier storage of our films.

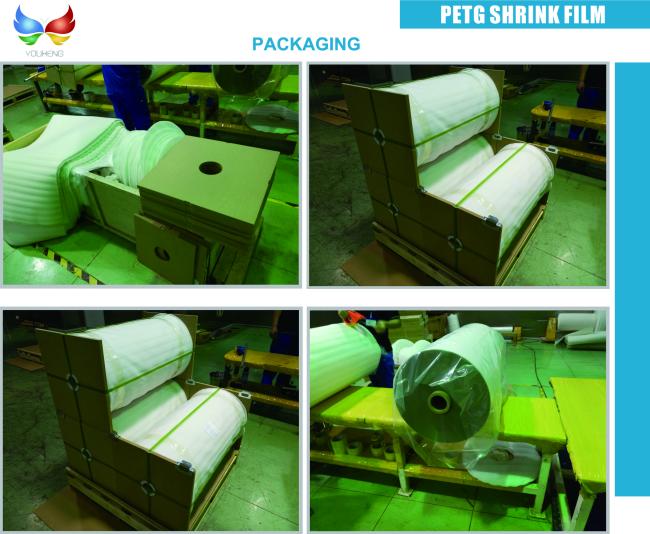

6. Package For PETG Shrink Film
7. Storage
1) Stored in the warehouse with the temperature below 23℃, In summer putting on airconditioning or other solution to cool down.
2) Please try to use up film within 3 months while they are at the perfect condition in 3 months.
8. FAQ
1) What is your MOQ?
--- Normally our MOQ for each size is 1ton. If you think it is too much, we can discuss according to your requirement in details.
2) Can you offer free sample?
--- Yes, we can provide free samples of 150m - 200m.
3) What is your delivery time?
--- We wil deliver in 15-20 work days
4) Can you accept mixed products in one container?
--- Yes, we accept for sure.
