Blow Molding PETG Shrink Film , Convenient Shrink Film Rolls For Wine Bottles
Below Molding Transparency Inner Packaging PET Shrink Film For Wine Bottles
Production Details

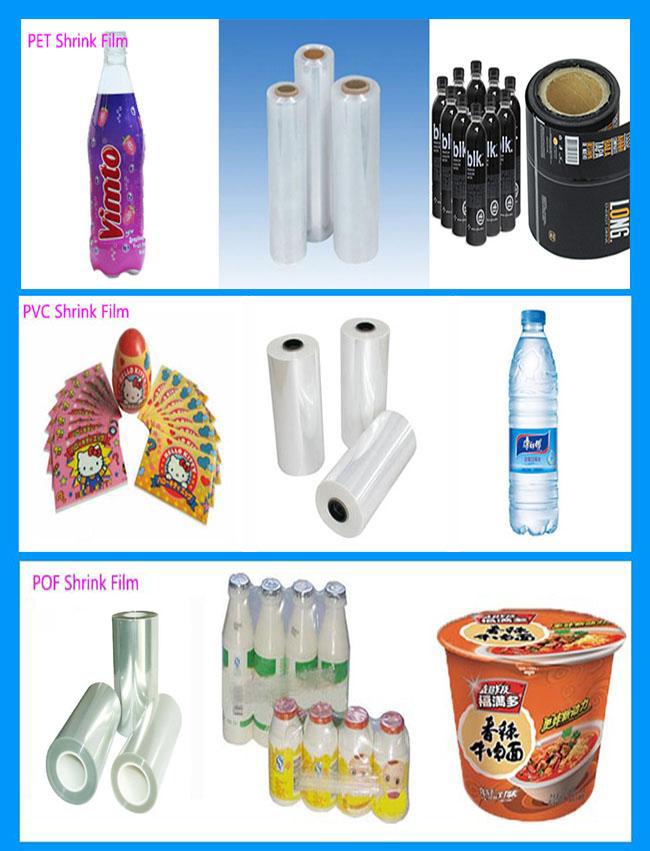

It is generally acknowledged that shrink films can be classfied into three kinds: PVC shrink film, PET shrink film and POF shink film. To some extent, these three materials can be printed with the same label. They have similar applications in daily life. But there are also some differences among them. In terms of the price, PVC is lowest. But PET has the highest shrinkage and printablity.POF is Heat shrinkable homogeneous and suitable for fully automatic high-speed packing,which usually is the substiute for PVC.
Technical Datas
| No | Test Item | UNIT | Standard | Test Result | Decide | |||
| 1 | (Average thickness deviation) | μm | ±3 | 0 | Qualified | |||
| 2 | TENSILE STRENGTH | (MD) | MPa | ≥42 | 65.8 | Qualified | ||
| (TD) | MPa | ≥142 | 231 | |||||
| 3 | ELONGATION | (MD) | % | ≥300 | 591 | Qualified | ||
| (TD) | % | ≥35 | 55 | |||||
| 4 | (Elasticity Modulus) | (MD) | MPa | ≥1500 | 3269 | Qualified | ||
| (TD) | MPa | ≥3000 | 7370 | |||||
| 5 | HEAT SHRINKAGE | (MD) | % | ≤5.0 | 2.3 | Qualified | ||
| (TD) | % | 60～70 | 66 | |||||
| 6 | (HAZE) | % | ≤7.0 | 2.2 | Qualified | |||
| 7 | C.O.F | (IN/OUT) | dynamic friction coefficient | / | ≤0.50 | 0.47 | Qualified | |
| 8 | WETTING TENSION | mN/m | ≥38 | ≥38 | Qualified | |||
| 9 | Density | g/cm3 | 1.32±0.3 | 1.46 | Qualified | |||
Advantage
1. Nontoxic, odor free and environmentally friendly with high strength, high contraction rate and favorable packing effects.
2. High quality and competitive price.
3. Good flatness and coefficient of friction
Production Flow
Packaging
1. Inner Packing:
1) bubble film----to protect from collision during transportation
2) specified label----factory label or customized label without factory information
2. Outer Packing
1) different types of packing way according to roll size or customer's request
2) wooden pallet with or without fumigation
FAQ:
1. Q: What is your Payment?
A: T/T or L/C. And 30 deposit paid before production, 70% balance before shipment.
2. Q: What is our delivery time?
A: Samples need 3~7 days prepared, and mass production need 15~25 days.
3. Q: Where is loading port?
A: FOB,Shanghai.
4. Q: What information should I let you know if I want to get a quotation?
A: - Size of the products (Length x Width x Height)
- Usage
- Material
- Printing colors
- Quantity
If it is possible, please also provide pictures or design sketch for checking.
.
