Sample Available In Roll PETG Shrink Film For Bottle Label , Excellent Clarity
Sample Available In Roll PETG Shrink Film For Bottle Label , Excellent Clarity
Supply Ability
Supply Ability:1000 Metric Ton/Metric Tons per Month
Packaging & Delivery
Packaging Details: Suspended Pallet Packing
Lead Time : About 7 - 15 days after confirmed the order
Port: Shanghai
1. Product Details Of PETG Shrink Film
While PETG is the most expensive and most heat resistant shrink sleeve material, they are the most scuff resistant, have a higher gloss, and also have a higher shrink percentage up to 75%. Additionally, PETG is pasteurisable, environmentally friendly and can be recycled, an often-sought feature in today's market.
2. Product Specifications Of PETG Shrink Film
Item: PETG shrink film
Type: HYF-2011, HYF-2012, HYF-2013
Thickness: 30-50micro (Regular thickness:30, 35, 40, 45, 50micro.)
Width: 300mm-1400mm.
Length: 2000-10000m (Regular length: 2000m, 4000m, 4500m, 5000m, 6000m, 9000m)
3” core or 6” core
Max. OD 1000mm.
Our shrink films pass REACH, RoHS, Eu food contact and etc.
3. Product Parameter Of PETG Shrink Film
| No | Test Item | UNIT | Standard | Test Result | Decide | |||
| 1 | (Average thickness deviation) | μm | ±3 | 0 | Qualified | |||
| 2 | Tensile Strength | (MD) | MPa | ≥42 | 65.8 | Qualified | ||
| (TD) | MPa | ≥142 | 231 | |||||
| 3 | Elongation | (MD) | % | ≥300 | 591 | Qualified | ||
| (TD) | % | ≥35 | 55 | |||||
| 4 | Elasticity Modulus | (MD) | MPa | ≥1500 | 3269 | Qualified | ||
| (TD) | MPa | ≥3000 | 7370 | |||||
| 5 | Heat Shrinkage | (MD) | % | ≤5.0 | 2.3 | Qualified | ||
| (TD) | % | 70～80 | 78 | |||||
| 6 | Haze | % | ≤7.0 | 2.2 | Qualified | |||
| 7 | C.O.F | (IN/OUT) | dynamic friction coefficient | / | ≤0.50 | 0.47 | Qualified | |
| 8 | Wetting Strength | mN/m | ≥38 | ≥38 | Qualified | |||
| 9 | Density | g/cm3 | 1.32±0.3 | 1.46 | Qualified | |||

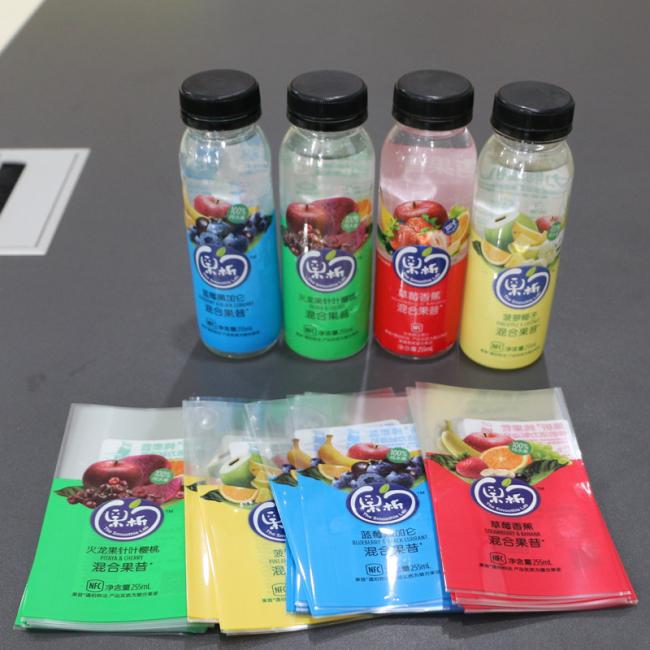

4. Application Of PETG Shrink Film
-Widely for all types of bottles, cups, trays printing
-Used for making full body sleeves and containers
5. Advantages Of PETG Shrink Film
"Slow shrink" behaviour
Very high shrinkage ratio (78%)
Excellent processing properties
Eco-compatible
Excellent transparency

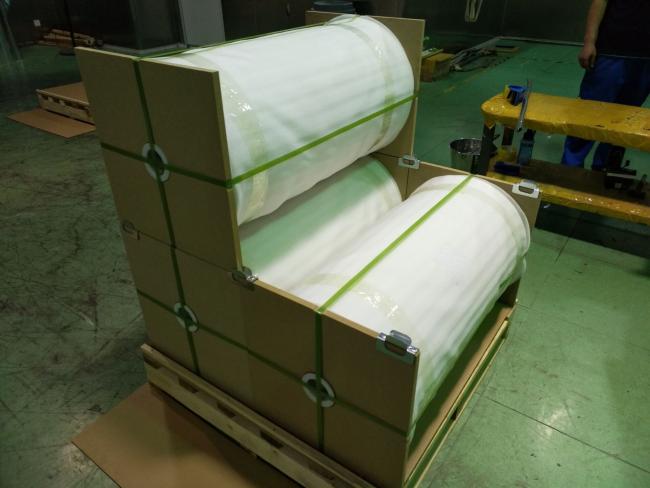

6. Package Of PETG Shrink Film
7. Production Lines Of PETG Shrink Film
Hubei Hyf Packagaing Co., Ltd. Is A Professional Manufacturer And Sales Of Shrink Film And Other Package Materials Since 2005, Located In China "Optics Valley" - Wuhan City.
Hyf Packaging Started To Produce Petg (Pet) Shrink Film Since 2011, And Introduced Two Automated Film Production Lines From Germany (Bruckner) With Production Capacity Of 12,000 Tons Per Year.
