Construction Sand Washing Machine Water Saving And Hydropower
Introduction of Sand Washer
The bucket wheel sand washer and spiral sand washer can clean and separate stone, powder and dust from dinas. Its novel seal structure and reliable gearing ensure the cleaning and dehydration effects.The sand washer is a kind of high efficiency sand washing equipment operated with sand maker.
XL series spiral sand washing machine application field: widely used in stone factories, mixing stations, building materials, water saving and hydropower.
Advantages of Sand Washer
1. Simple structure, convenient to repair
2. High processing capacity and low power consumption
3. Low wear-parts consumption, low cost

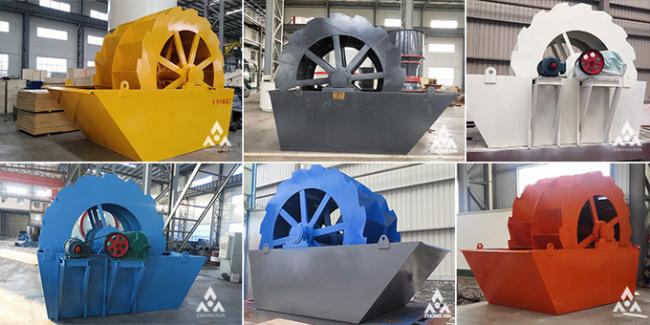

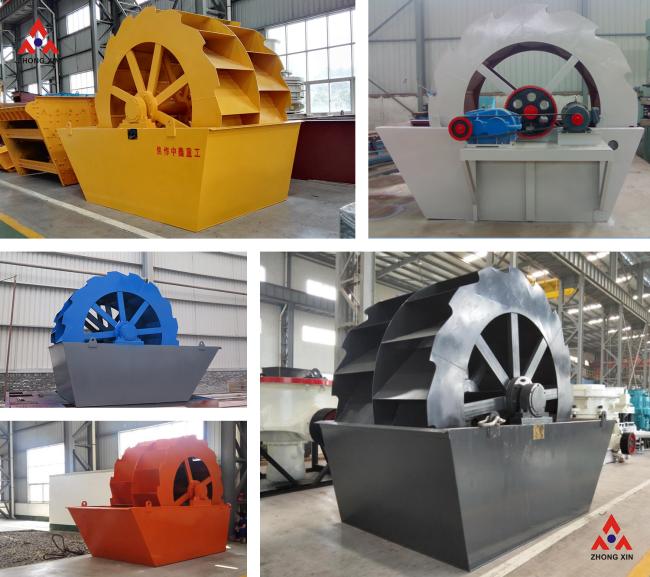

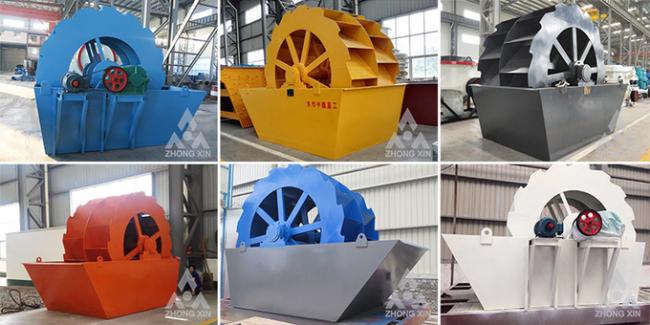

Technical Data of Bucket Wheel Sand Washer
| Model | Bucket wheel diameter (mm) |
Max feeding size (mm) |
Capacity (t/h) |
Speed (r/min) |
Power (kw) |
Overall dimension (L×W×H)(mm) |
Weight (t) |
XS2600 |
2600 |
≤10 |
20-50 |
2.5 |
5.5 |
3550X2080X2650 |
2.67 |
|
|
2600 |
≤10 |
30-70 |
2.5 |
5.5 |
3550X2080X2650 |
2.9 |
|
|
2800 |
≦10 |
50-100 |
1.2 |
11 |
3964x2137x2895 |
3.98 |
|
XS3200 |
3200 |
≤10 |
80-120 |
1.2 |
15 |
4346x2934x3345 |
7.27 |
|
XS3600 |
3600 |
≤10 |
120-180 |
1 |
15 |
4355X4505X3810 |
9.43 |

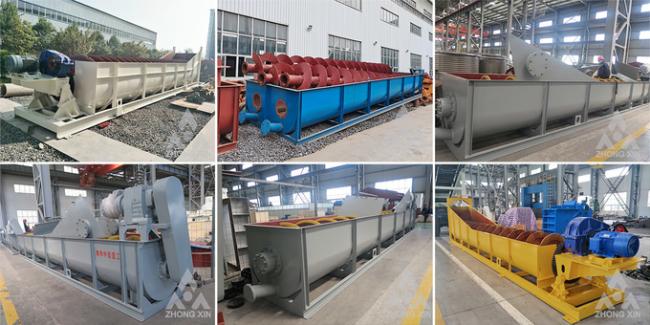

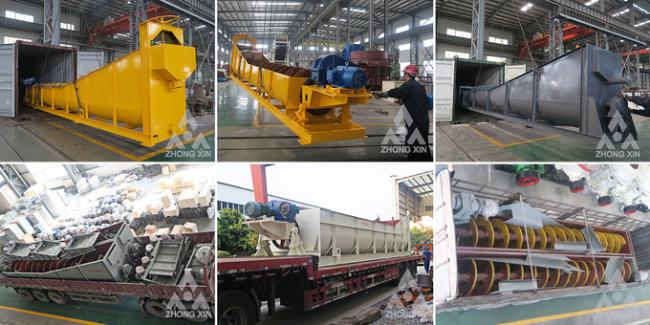

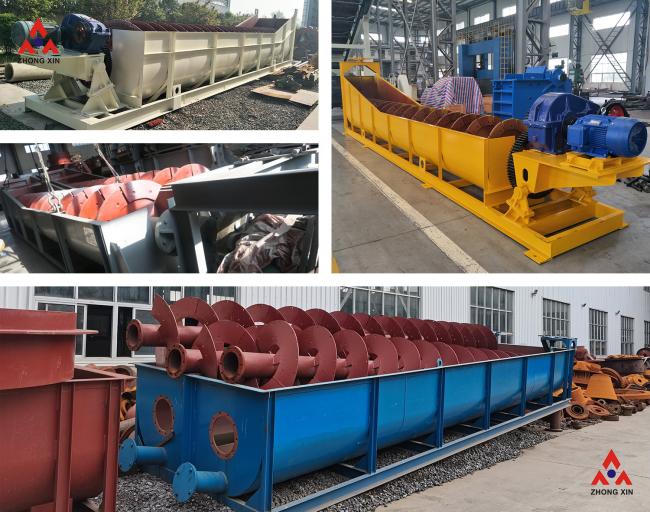

Technical data of spiral sand washer
| Model | Screw diameter(mm) | Length of Chute (mm) | Max feeding size(mm) | Capacity (t/h) | Speed (r/min) | Power (kw) | Water Consumption(t/h) | Overall dimension(L×W×H)(mm) | Weight(t) |
| XL508 | 508 | 6705 | ≦10 | 20 | 38 | 5.5 | 6-60 | 8000*2343*1430 | 2.67 |
| XL610 | 610 | 7225 | ≦10 | 40-50 | 32 | 7.5 | 6-63 | 8000*2050*1400 | 3.80 |
| XL762 | 762 | 7620 | ≦10 | 50-75 | 26 | 11 | 9-63 | 8545*2650*3862 | 5.23 |
| XL920 | 920 | 8026 | ≦10 | 100 | 18 | 11 | 10-80 | 8715X1632X2075 | 4.6 |
| 2XL920 | 920 | 8026 | ≦10 | 150-180 | 18 | 2*11 | 20-160 | 8715X2602X2075 | 7.9 |
| XL1115 | 1115 | 8532 | ≦10 | 175 | 18 | 15 | 20-150 | 9231X1833X2126 | 5.6 |
| 2XL1115 | 1115 | 8532 | ≦10 | 200-250 | 18 | 2*15 | 40-300 | 9231X2995X2126 | 10 |

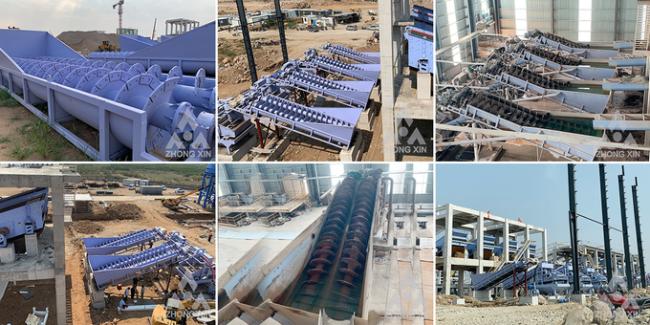

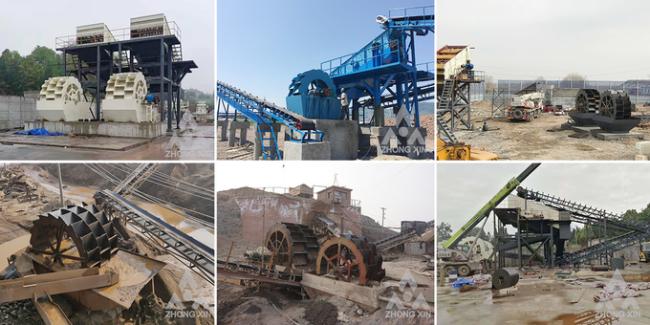

Production site
