Silica sand cleaning washing plant/ bucket sand washer in Philippines

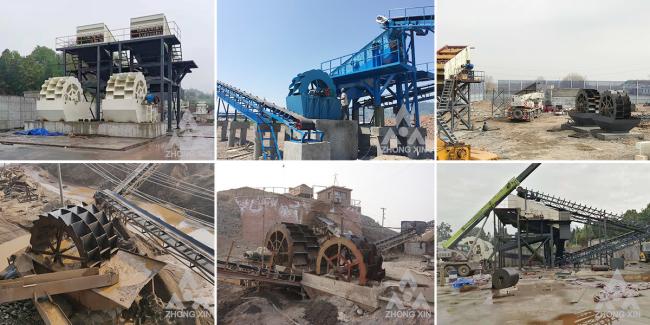

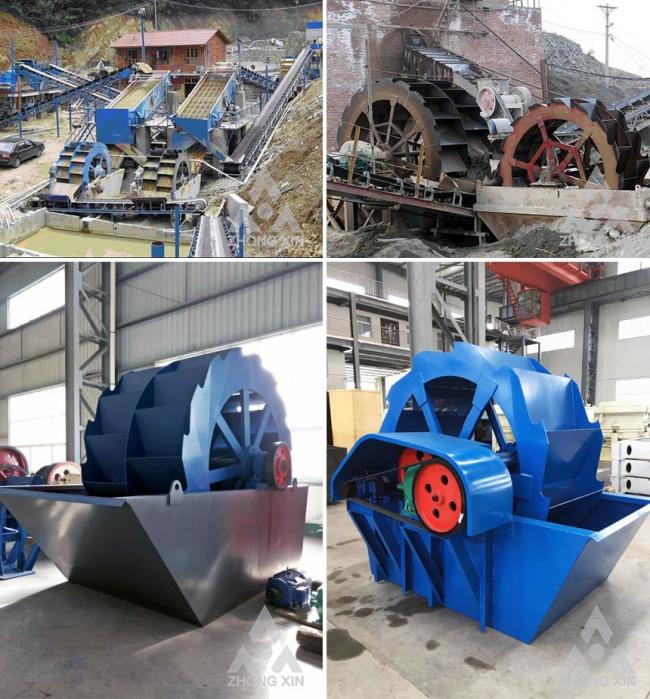

Sand washer is a kind of water washing style equipment to be matched with the sand making machine and can reduce the dust and stone powder which mixes with the final sand, so sand washing machine can improve the quality of the sand. The materials include the required gravel in building-site, gravel factories, hydropower station and concrete dam site, post and electric pole factory, casting-70 sand, glass factory’s quartz sand and refilling pressure sand. Sand washer is mainly used in building site, gravel plant, concrete dam building site of hydropower station.
Working Principle:
1. The electric motor runs slowly with the impellor after decelerated by the belt, decelerator and gears wheel.
2. The sand and stone flow into washing launder from feeding launder, rolls with the impellor, and grinds each other. The impurity covering the sand is washing away. At the same time, add more water, the strong water flow will take away waste and some low-weight wastes from washing launder.
3. Through the above process, the washing function is finished. The clean sand and stone is lift up by vane. When it goes up slowly, the water begins to drop through the mesh and fall back in the washing launder.
4. On one hand, water is removed from the sand and stone; on the other hand, the water can be fully used. Finally, the sand and stone goes to the out launder from the rotary impellor to finish the washing task.
Specification:
| Model | Bucket wheel diameter (mm) |
Max feeding size (mm) |
Capacity (t/h) |
Speed (r/min) |
Power (kw) |
Overall dimension (L×W×H)(mm) |
Weight (t) |
XS2600 |
2600 |
≤10 |
20-50 |
2.5 |
5.5 |
3550X2080X2650 |
2.67 |
|
|
2600 |
≤10 |
30-70 |
2.5 |
5.5 |
3550X2080X2650 |
2.9 |
|
|
2800 |
≦10 |
50-100 |
1.2 |
11 |
3964x2137x2895 |
3.98 |
|
XS3200 |
3200 |
≤10 |
80-120 |
1.2 |
15 |
4346x2934x3345 |
7.27 |
|
XS3600 |
3600 |
≤10 |
120-180 |
1 |
15 |
4355X4505X3810 |
9.43 |
