Factory vsi sand making machine crusher mechanical machine sand making machine for aggregate shaping

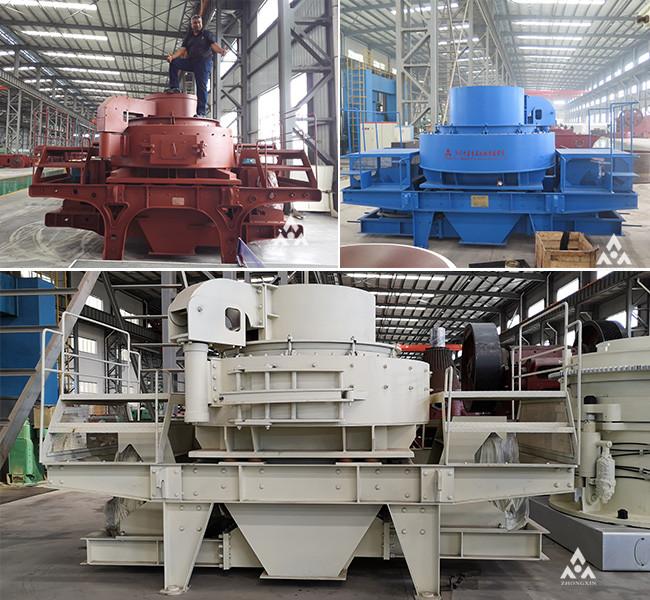

Sand making machine vertical shaft impact crusher
sand machine introduction
VSI series vertical shaft impact crusher provides sand and gravel aggregates for highways, high-speed railways, high-rise buildings, municipal engineering, hydropower dam construction, and concrete mixing plants. It is an equipment for artificial sand making and stone shaping.
Applicable materials: cobblestone, basalt, granite, iron ore, copper ore, cement, artificial sand, fluorite, limestone
Application areas: used in aggregate shaping, machine-made sand, asphalt concrete, building materials, mining, chemical industry, highway, railway, metallurgy, construction, highway, water conservancy and other industries
Product advantages
1,Vertical Shaft Impact Crusher“stone striking stone” working principle, high efficiency, low electricity consumption, and high efficiency crushing.
2,Strong ability of through the non-crushing material, low effects by the material moisture content.
4,Vertical Shaft Impact CrusherMechanism for the production of sand, the gradation of finished product is in an adjustable fineness modulus.,
5,Simple structure, low cost, easy operation/ maintenance and installation.
6,Low noise and the dust pollution.
7,Low weight and various installation, can be installed on mobile.,
Specification
| Model | VSI7611 | VSI8518 | VSI9526 | VSI1140 | VSI1145 | |
| Capacity (T/H) | Surrounding feed and center feed | 120-180 | 200-260 | 300-380 | 450-520 | 500-640 |
| Full center feed | 60-90 | 100-130 | 150-190 | 225-260 | 250-360 | |
|
The max feeding size(mm) |
Soft stone | 35 | 40 | 45 | 50 | 50 |
| Hard Material | 30 | 35 | 40 | 45 | 45 | |
| Speed(r/min) | 1700-1890 | 1520-1690 | 1360-1510 | 1180-1310 | 1200-1390 | |
| Double motor power(kW) | 110 | 180 | 264 | 400 | 440 | |
| Dimension L×W×H (MM) | 3700×2150 ×2100 | 4140×2280 ×2425 | 4560×2447 ×2778 | 5000×2700 ×3300 | 5100×2790 ×3320 | |
| Weight (t) | 11.8 | 14.5 | 17.8 | 25.6 | 26 | |
| Lubrication station | Double oil pump motor power(kW) | 2×0.55kW | ||||
| Security | One dual oil pump works one by one, and the standby oil pump is automatically turned on when the flow is low. High oil temperature, automatic shutdown without oil return,Air cooler lowers oil temperature, heater warms up oil temperature in winter. | |||||
| Over Dimension L×W×H(mm) | 1200Х790Х1120 | |||||
| Tank heater power(kW) | 2 | |||||
Working Principle
Vertical shaft impact crusher Working Principle:The material falls from the upper side of machine, then into the impeller, with the effect of centrifugal force, the material was crushed with other parts of the material which shunt around the impeller in a umbrella shape. After the cross impacting, the materials will be forming an eddy current and then impact, crush with each other again, then discharging from the lower part. The whole system forms a close circuit and through multi-cycles,matched granularity of the product by the control of screen set
