Large capacity Mining Equipment Rock vibrating screens factory price with capacity 400t/h
Description

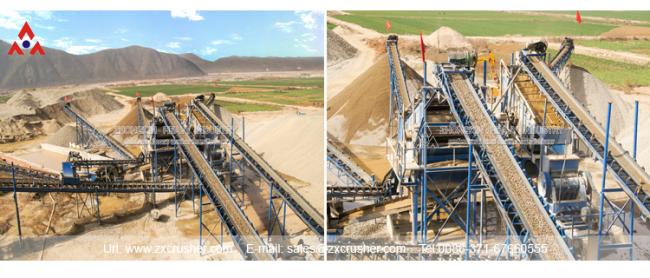

circular vibration screen manufacture is a kind of multi deck vibrating screen. with circular motion is specially designed for quarry to separate crushed stone material into different sizes, and is also used as a grading machine in coal dressing, ore dressing, construction material, electric and chemical industries. circular vibration screen manufacture has a feature of advanced structure, powerful vibrating forces, low vibration noise, easy maintenance, high durability and etc.

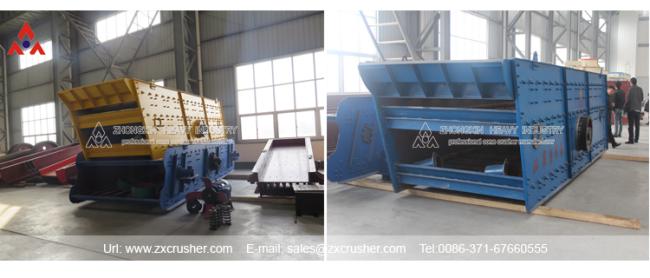

The Circular Vibrating Screen is consist of vibrator, mesh box, bearing, suspension gear, and motor. Circular Vibrating Screen is made by quality stick steel plate, which give it long lifetime for running. the Circular Vibrating Screen spring designed and made by our company are of high precision and efficiency.
Features
1. High vibrating force with unique eccentric structure.
2.Steady vibration, reliable operation, low noise,
3. Low energy consumption, long service life,
4.Convenient maintenance, light weight, small volume,
5. High efficiency, easy maintenance, sturdy and durable.
6.With enclosed structure fuselage, dust pollution is prevented.
7.High efficiency and little noise pollution;
8. Stable structure and strong exciting force.
Working principle
Circular Vibrating Screen uses electric exciter as vibrating source, the material will be thrown around the screen, at the same time doing forward sports, in order to achieve the screening purpose. Material from the feeder evenly enters into the Circular Vibrating Screen's feeding inlet, with multilayer sieves to produce various of products and unqualified products on the screen or under the screen, then discharging from the outlet repectively. Circular Vibrating Screen can be used in the automatic production line.
The motor makes the exciter swing rotate speedily through the tire coupling.The continuous forced circular motions of sieve box were achieved through the powerful centrifugal force.Under the influence of sieve box, the materiel are tossed forward successively on the mesh.They were classified as thrown up, and the particals smaller than the mesh size were sieved out when they are falling, so that the classification of material could be achieved.
Specifications
| Model | Screen Size(mm) | Layers | Screen Mesh (mm) | Max Feed Size(mm) | Capacity (t/h) | Power (Kw) | Vibrating Frequency(r/min) | Double Swing (mm) |
| 2YK1237 | 3700*1200 | 2 | 3-80 | 100 | 10-80 | 11 | 750-950 | 5-9 |
| 3YK1237 | 3700*1200 | 3 | 3-80 | 100 | 10-80 | 11 | 750-950 | 5-9 |
| 2YK1548 | 4800*1500 | 2 | 3-80 | 100 | 30-200 | 15 | 750-950 | 5-9 |
| 3YK1548 | 4800*1500 | 3 | 3-80 | 100 | 30-200 | 15 | 750-950 | 5-9 |
| 2YK1848 | 4800*1800 | 2 | 3-80 | 100 | 50-250 | 18.5 | 750-950 | 5-9 |
| 3YK1848 | 4800*1800 | 3 | 3-80 | 100 | 50-250 | 18.5 | 750-950 | 5-9 |
| 2YK1860 | 6000*1800 | 2 | 3-80 | 100 | 60-300 | 22 | 750-950 | 5-9 |
| 3YK1860 | 6000*1800 | 3 | 3-80 | 100 | 60-300 | 22 | 750-950 | 5-9 |
| 4YK1860 | 6000-1800 | 4 | 3-80 | 100 | 60-300 | 30 | 750-950 | 5-9 |
| 2YK2160 | 6000*2100 | 2 | 3-80 | 100 | 80-400 | 22 | 700-900 | 5-9 |
| 3YK2160 | 6000*2100 | 3 | 3-80 | 100 | 80-400 | 30 | 700-900 | 5-9 |
| 4YK2160 | 6000*2100 | 4 | 3-80 | 100 | 80-400 | 30 | 700-900 | 5-9 |
| 2YK2460 | 6000*2400 | 2 | 5-80 | 100 | 100-500 | 30 | 700-900 | 5-9 |
| 3YK2460 | 6000*2400 | 3 | 5-80 | 100 | 100-500 | 37 | 700-900 | 5-9 |
| 4YK2460 | 6000*2400 | 4 | 5-80 | 100 | 100-500 | 37 | 700-900 | 5-9 |
