Professional Mining Vibrating Feeder For Quarry Plant And Mining
Price:
Negotiable
MOQ:
1
Delivery Time:
Negotiable
Brand:
xinhai
Product Description

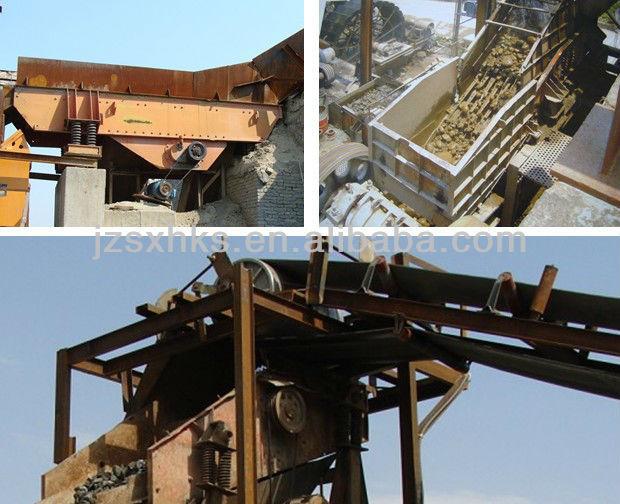

vibrating feeder description:
GTZ Series Vibrating Feeder adopts the vibrating motor to produce vibration force. It is used to feed material into the primary crusher homogeneously, meanwhile because of the barshaped screen, it can screen away soil contained in the raw material, increase the capacity of the primary crushing.
It is suitable for feeding material into the primary crusher in hydropower field, building material and mining.
Features and Benefits of GZT Series Vibrating Feeder:
1.simple structure
2.Reliable operation
3.High quality
Specifications
Technical Data of Vibrating Feeder:
| Model | Max Feed Size(mm) | Capacity(t/h) |
Motor Power (kw) |
Installation Slope(°) |
Double Amplitude (mm) |
Overall Dimensions(mm) | Weight (kg) |
| GZT-0724 | 450 | 30-80 | 2*1.5 | 10 | 4-6 | 2481*1130*990 | 2422 |
| GZT-0932 | 560 | 80-150 | 2*2.4 | 10 | 4-8 | 3298*1512*1195 | 3203 |
| GZT-0940 | 560 | 80-180 | 2*3.7 | 10 | 4-8 | 4100*1818*1134 | 3700 |
| GZT-1148 | 600 | 150-300 | 2*5.5 | 10 | 4-8 | 4926*1676*1475 | 5060 |
| GZT1256 | 800 | 180-400 | 2*7.5 | 10 | 4-8 | 5704*1840*1492 | 6385 |
| GZT-1560 | 1000 | 400-600 | 2*13 | 10 | 4-8 | 6110*2440*1560 |
