Large Capacity Stone Mining Vibrating Feeder For Mining And Construction Use
Price:
7999
MOQ:
1
Delivery Time:
10
Brand:
zhongxin
Product Description

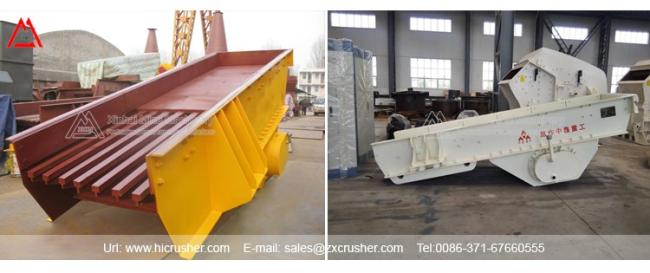

Vibrating Feeder for mining description:
ZWS Series Vibrating Feeder is mainly used to feed material into the primary crusher homogeneously and continuously. Meanwhile, it can screen the fine material and make the crusher more powerful.
Product Features
Vibrating Feeder for mining features:
Features:
Smooth vibrating
special fence can prevent the block of raw material
The distance between fences is adjustable
Frequency conversion motor can be equipped to facilitate feeding control, and frequent startup of motor is avoided.
Specifications
Vibrating Feeder for mining Specification:
| Model | Max Feed Size(mm) | Capacity (t/h) | Motor Power (L*W*H) (kw) | Overall Dimensions (mm) | Weight (kg) | Size of Funnel(mm) |
| ZSW-380*95 | 500 | 96-160 | 11 | 3882*2224* 2121 | 4082 | 3800*950 |
| ZSW-490*95 | 500 | 120-240 | 15 | 4957*2277* 2150 | 5004 | 4900*950 |
| ZSW-490*110 | 580 | 120-280 | 15 | 4957*2400* 2150 | 5320 | 4900*1100 |
| ZSW-590*110 | 600 | 200-350 | 22 | 6000*2500* 2150 | 6130 | 5900*1100 |
| ZSW-600*130 | 750 | 400-560 | 22 | 6082*2580* 2083 | 7800 | 6000*1300 |
| ZSW-600*150 | 1000 | 800 | 30 | 6627*2350* 3068 | 12110 | 6000*1500 |
| ZSW-600*200 | 1000 | 1200 | 37 | 6436*3853* 3014 | 18650 | 6000*2000 |
