Gold Mining Stone Jaw Crusher Tooth Plate With Long Service Life

Product features of stone jaw crusher

Jaw Crusher is ideally suitable for primary and secondary crusher for material with compression strength less than 320MPA. Jaw Crusher is of high crushing ratio, larger capacity, well-distributed product size, simple structure, reliable performance, convenient maintenance, lower operation and cost, etc. It is widely used in mining, metallurgy, construction, highway, railroad, and water conservancy, etc.

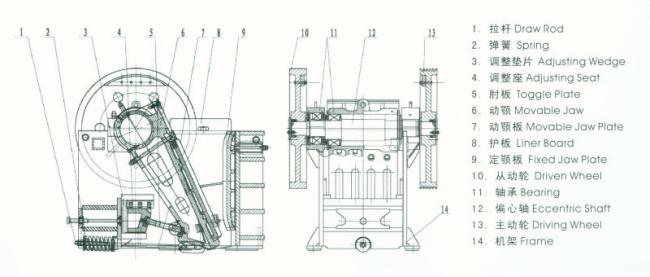

Working principle of stone jaw crusher

The electrical motor transmits power to the eccentric shaft through vbelt and belt pulley. Then the exciting force generated by the eccentric shaft will make the movable jaw move upwards and downwards. This movement would trigger the toggle plate to push the movable jaw forwards and backwards. When the movable jaw moves forth towards the fixed jaw, materials in the crushing cavity will be squashed or chopped. And then the movable jaw travels back, the chopped or squashed materials which meet the requirement will be discharged from the outlet. Since the motor keeps working. The crusher will crush and discharge periodically to achieve mass production

Features and advantage of stone jaw crusher

1, High crushing ratio, well-distributed final product size.
2, Discharge opening of the jaw crusher is adjustable reliably within a wide range through the stuffing of shim, thus it is capable to meet various requirements of customers
3, lubrication system of it is safe and reliable, which boasts an easy and convenient maintenance
4, simple structure, reliable performance, low maintenance cost
5, little dust and low noise

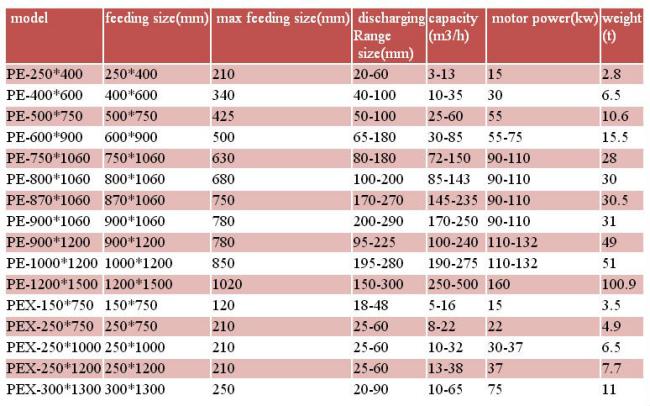

Technical Data of stone jaw crusher

Note: the processing capacity is described on the basis of data about processing mid-hard materials and the bulk density of crushed materials is 1.6t/m3
