Chinese granite rock crusher stone simple structure sand washing machine for construction material
Introduction of Sand Washer
The bucket wheel sand washer and spiral sand washer can clean and separate stone, powder and dust from dinas. Its novel seal structure and reliable gearing ensure the cleaning and dehydration effects.The sand washer is a kind of high efficiency sand washing equipment operated with sand maker.
Advantages of Sand Washer
1. Simple structure, convenient to repair
2. High processing capacity and low power consumption
3. Low wear-parts consumption, low cost
Technical Data of Bucket Wheel Sand Washer
| Model | XS2600 | XS2600II | XS2800 | XS3200 | XS3600 |
| Diameter of The Wheel Bucket (mm) | 2600 | 2600II | 2800 | 3200 | 3600 |
| Rotation Rater (r/min) | 2.5 | 2.5 | 1.2 | 1 | 1 |
| Maximum Feeding Size (mm) | 10 | 10 | 10 | 10 | 10 |
| Processing Capacity (t/h) | 20~50 | 30~70 | 50~100 | 80~120 | 120~180 |
| Motor Power (kw) | 5.5 | 5.5 | 7.5 | 11 | 15 |
|
Overall Dimensions (mm) |
3515*2070* 2672 |
3515*2070* 2672 |
3900*3300* 2990 |
3965*4440* 3410 |
4355*4505* 3810 |
| Weight (kg) | 2500 | 2900 | 3980 | 7270 |
9430 |

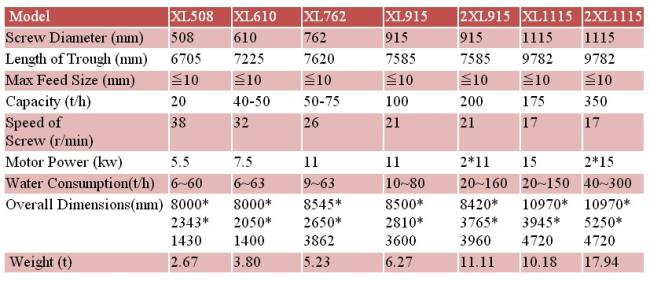

Technical Data of Screw or Spiral Sand Washer
