Battery Crush and Needle Penetration Tester with 15KN Extrusion Force Explosion-Proof Test Chamber and Remote Computer Control
Price:
To be quoted
MOQ:
1
Delivery Time:
Negotiable
Brand:
Kingpo
Product Description

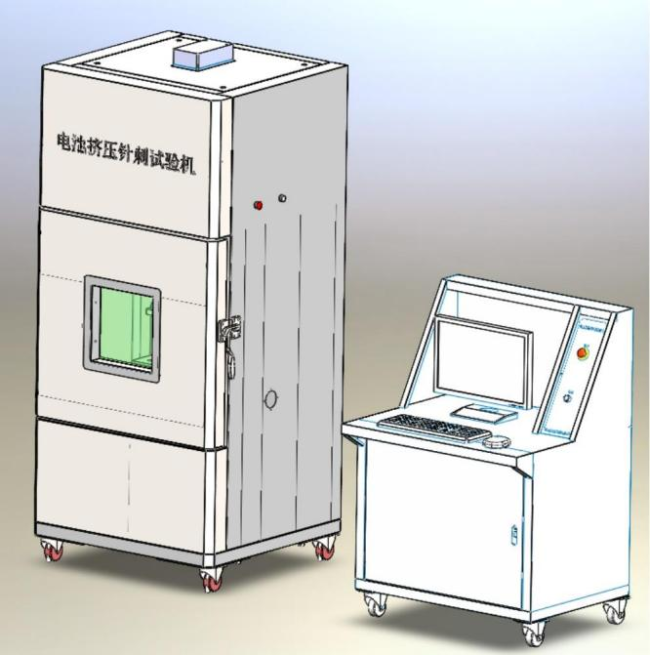

Battery Crush and Needle Penetration Tester - KP-8101C
Professional testing equipment for evaluating battery safety under compression and puncture conditions, compliant with international safety standards.
Key Technical Specifications
Model: KP-8101C
Structure: Vertical servo electric cylinder transmission
Control Method: Remote computer control
Test Space: W300×D300×H300 mm

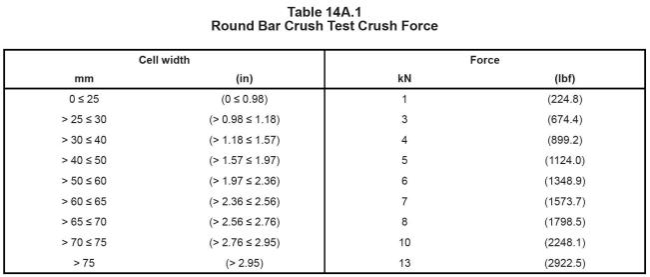

Extrusion Force Range: 1-15 kN (adjustable)
Force Accuracy: ±0.01 kN to ±0.7 kN depending on force level
Maximum Stroke: 300 mm
Displacement Accuracy: ±0.1 mm
Test Speed Range: 0.1-40 mm/s
Voltage Channels: 2 channels, 0-10V range
Temperature Channels: 2 channels, 0-800°C range
Power Supply: AC 220V, 50Hz
Total Power: 1.5 kW
Safety Features
- Explosion-proof stainless steel test chamber (SUS304)
- Pressure relief vent with protective screen
- Smoke exhaust system with 450m³/h capacity
- Explosion-proof chains on doors
- Access control safety interlock
- Three-color alarm light system
- Emergency stop protection
- Explosion-proof glass observation window
Testing Capabilities

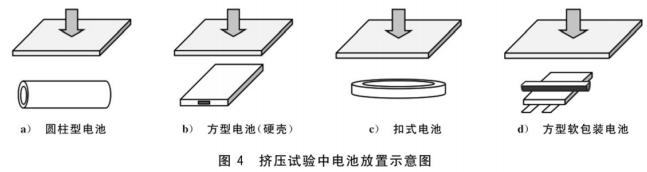

Compatible with cylindrical, square, button, and soft pack batteries according to GB31241-2022 standards.
Extrusion Heads:
- Flat extrusion head: Ø150 mm

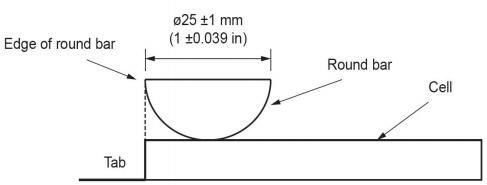

- Cylindrical extrusion head: Ø25 mm × 200 mm
Steel Needles:
- Material: SKD11, 45° tip angle
- Ø3 mm × 100 mm (5 pieces)
- Ø5 mm × 100 mm (5 pieces)
Data Acquisition & Control
Advanced computer-controlled system with real-time monitoring and data export capabilities.
Software Features:
- Chinese/English interface selection
- Real-time parameter recording (force, displacement, temperature, voltage)
- Curve display and analysis
- Data export to Excel format
- Multi-channel data acquisition
Compliance Standards
- GB 31241-2022 - Safety Requirements for Lithium-ion Batteries
- IEC 62133-1-2017 - Secondary Battery Safety
- UL 1642-2022 - Lithium Battery Safety Standard
- UN 38.3 - Transport of Dangerous Goods
Physical Specifications
| Host Dimensions | W850 × D800 × H1970 mm |
| Control Cabinet | W830 × D750 × H1200 mm |
| Equipment Weight | Approx. 350 kg |
Standard Configuration
- Testing Host (1 unit)
- Computer Control Cabinet (1 unit)
- Operating Instructions
- Factory Inspection Report
- CNAS qualified measurement certificate
Quality Assurance
Equipment includes performance certificate from provincial-level testing agency and third-party verification with CNAS mark.
