IEC 62196-1:2022 Compliant Insertability Gauge for Round Unprepared Conductors with Maximum Specified Cross-Section in 16-Piece Set
Price:
To be quoted
MOQ:
1
Delivery Time:
35 working days
Brand:
kingpo
Product Description
IEC 62196-1:2022 Figure 11 Gauges for testing insertability of round unprepared conductors having the maximum specified cross-section

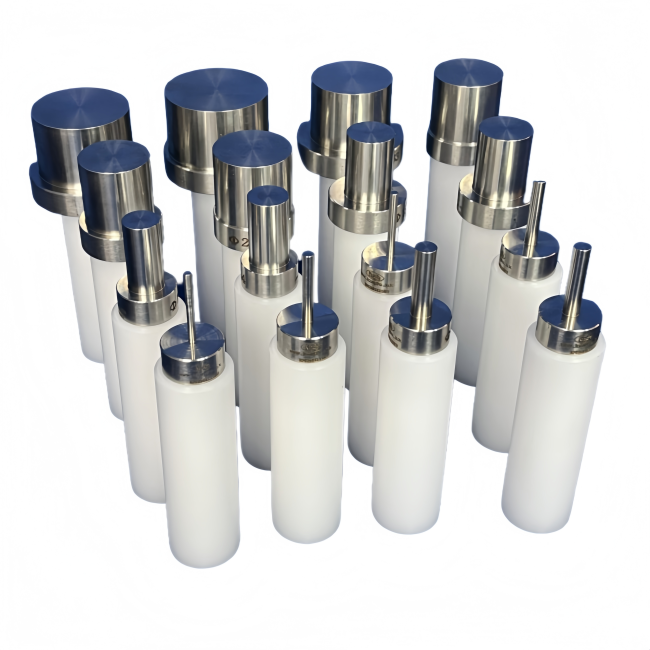

Product Overview For Gauges For Testing Insertability Of Round Unprepared Conductors:
The gauges conform to IEC 62196-1:2014 clause 13.2.1 figure 6 table 7, IEC 62196-1:2022 clause 13.2.1 figure 11 table 2.
They are used to verify the screw type terminals shall allow the proper connection of copper or copper-alloy conductors having nominal cross-sectional areas as shown in Table 2 of IEC 62196-1:2022.
Technical parameters For Gauges For Testing Insertability Of Round Unprepared Conductors:
Total 16 pcs.
Made of steel, with nylon handle.

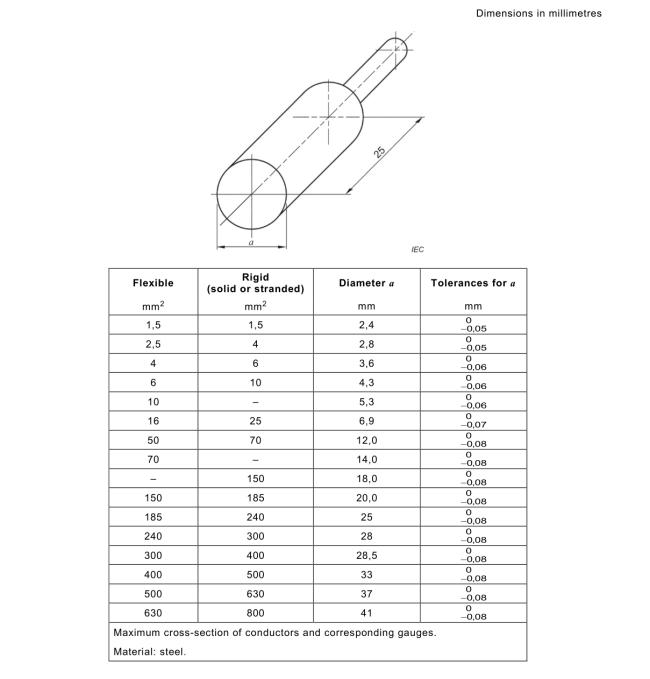

The dimensions and shapes are made according to following standard figure and table:
