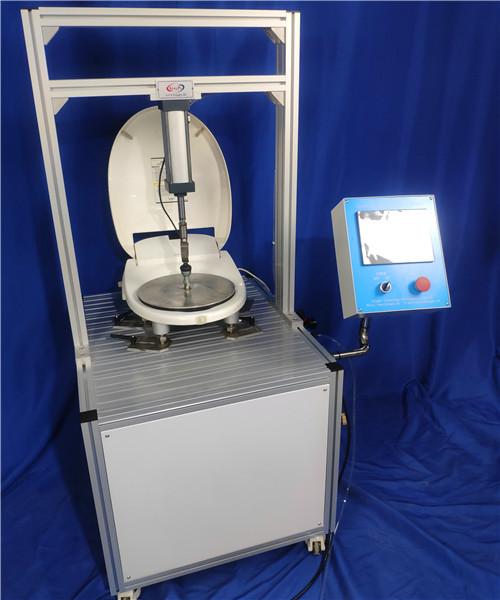

IEC 60335-2-84 Toilet Seat Endurance Test Apparatus Applying 1250N

IEC 60335-2-84 Toilet Seat Endurance Test Apparatus Applying 1250N

TESTING AND MEASURING EQUIPMENT/ALLOWED SUBCONTRACTING

IEC 60335-2-84, 2nd Edition (2002) - A1/2008 - A2/2013

Household and similar electrical appliances – Safety – Part 2-84: Particular requirements for toilet appliances

Standard requirement

21 .103.1 The appliance is subjected to an evenly distributed force of 1250 N applied perpendicularly to the seat for 4s by a rubber disc having a thickness of 10 mm, a diameter of 300 mm and a shore A hardness of 70°, with a steel disc having a thickness of 5 mm and a diameter of 300 mm attached on its upper surface. The test is carried out 20000 times.

Technical parameters

1. Force range: 0-2000N( adjustable By air pressure);
2. Pressure display: digital pressure sensor;
3. Force mode: cylinder
4. Rubber disc: diameter 300mm, thickness 10mm
5. Steel disc: diameter 300mm, thickness 5mm
6. Hardness of rubber disc: a shore a hardness of 70°
8. Count: 0-99999 times;
9. Control mode: PLC+ touch screen;
10. Frame: industrial aluminum support platform;
11. Power supply: AC220± 10% V
12. Dimensions: 1000W x 800D x 1400H mm.
13.According to:IEC60335-2-84-Cl 21.103.1
