ISO 80369-20 Medical Small Bore Connector Test Equipment

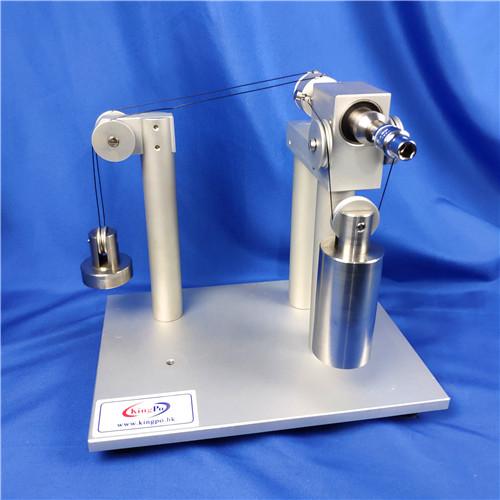

The Connector Assembly Device is the core piece of equipment required for all of the ISO 80369-20 specified tests.

The device is used to apply the required force and torque simultaneously when connecting a reference connector with a test sample. The device may also be used to apply a specified force-only or torque-only.

The connector assembly device is made from aluminum and hardened steel. The device has a durable and attractive anodized finish. The device has been designed to be compact and easy to use, with no other requirements like an electrical supply or compressed air, etc.

The Connector Assembly Device is suitable for the assembly requirements in:
ISO 80369-20 annexes: B, C, D, E, F, G, H and I; as well as
ISO 18250-1 annexes C, D, E, F, G, H and I.

This device is also suitable for carrying out the Resistance to overriding test per ISO 80369, and ISO 18250, Annex H.
