IEC60884-1 figure 40 / VDE 0620 Bild 39 Abnormal Heat of Insulating Sleeves of Plug Pins Test Apparatus

1. Product information:

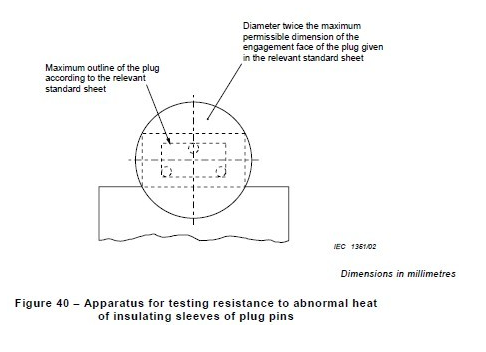

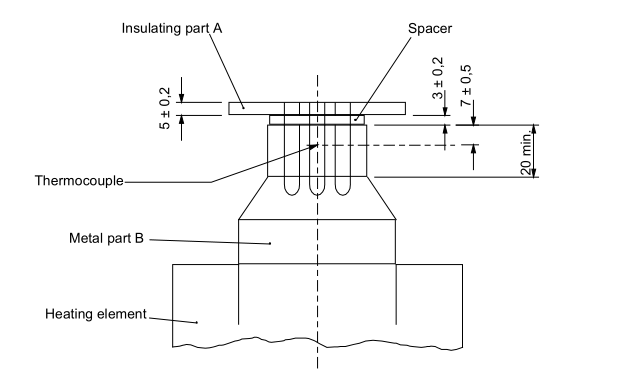

To determine testing resistance to abnormal heat of insulating sleeves of plug pins, in according to IEC 60884 1 figure 40,This test apparatus consists of an insulating plate A and of a metal part B: between these two parts an air space of 3 mm shall be provided and this distance shall be obtained through means which do not impair the air circulation around the pins.

2. Standard:

IEC60884-1-figure 40, VDE 0620-Bild 39 .

Technical parameters:

Insulation board: 5 mm thickness round flat surface, the diameter of the two times as test product surface' diameter;

Metal parts B (Fixture): the length is more than 20 mm, brass, five pieces, can be replaced;

Gap between insulation board and metal parts B: 3 mm, ensuring surrounding cross-ventilation

Distance between thermocouple and the metal parts B: 7 mm;

Bolt hole of Metal parts B: more than 0.1 mm;

Equipped with K-type electric heater, imported high-precision digital-display table.
