Bimetal Thrust Washer Bearing Low Carbon Steel For Automobile Engines Con Rod
Bimetal Thrust Washer , Low Carbon Steel Wth CuSn10Pb10
CuSn10Pb10 Bimetal Thrust Washer is backed with high quality low carbon steel with Tin-Lead-Bronze alloy (CuSn10Pb10) sintered on its surface.
CuSn10Pb10 Bimetal Thrust Washer can be applied to conditions of mediate load with mediate or high running velocity and conditions with enormous impact load. In mechanical application,
CuSn10Pb10 Bimetal Thrust Washer is sintered several times under high temperature and then stick firmly onto the steel plate. CuSn10Pb10 Bimetal Thrust Washer has high fatigue strength, load capacity and shock resistance.
CuSn10Pb10 Bimetal Thrust Washer is backed with high quality low carbon steel with Tin-Lead-Bronze alloy (CuSn10Pb10) sintered on its surface.
CuSn10Pb10 Bimetal Thrust Washer can be applied to conditions of mediate load with mediate or high running velocity and conditions with enormous impact load. In mechanical application,
CuSn10Pb10 Bimetal Thrust Washer is sintered several times under high temperature and then stick firmly onto the steel plate. CuSn10Pb10 Bimetal Thrust Washer has high fatigue strength, load capacity and shock resistance.

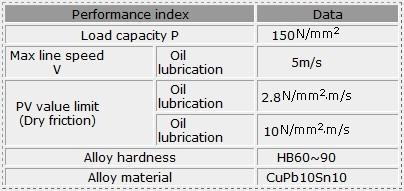

Physical and Mechanical Performance
| Performance Index | Data | Performance Index | Data | ||
| Max. Load | 150N/mm² | Mating Axis | Hardness | ≥53 HRC | |
| Linear Velocity | Grease Lubrication | 2.5 m/s | Roughness | Ra=0.13~0.63 | |
| Oil Lubrication | 5 m/s | Max. Working Temperature | Grease Lubrication | 150℃ | |
| Max. PV value | Grease Lubrication | 2.8N/mm²·m/s | Oil Lubrication | 250℃ | |
| Oil Lubrication | 10N/mm²·m/s | Friction Coefficient | 0.05~0.15 | ||
| Anti-tensile Strength | 185 N/mm² | Heat-conducting Coefficient | 47 W/(m*k) | ||
| Alloy hardness | HB 60~90 | Heat-expansion Coefficient | 18*10^-6k | ||
Alloy Chemical Compositions
| Content | Cu | Pb | Sn | Zn | P | Fe | Ni | Sb | Others |
| Remainder | 9-11 | 9-11 | 0.5 | 0.1 | 0.7 | 0.5 | 0.2 | 0.5 |
