Oilless Self Lubricating Bearings Wrapped By Steel Backing Sinter Bronze Layer And PTFE Antiwar Surface

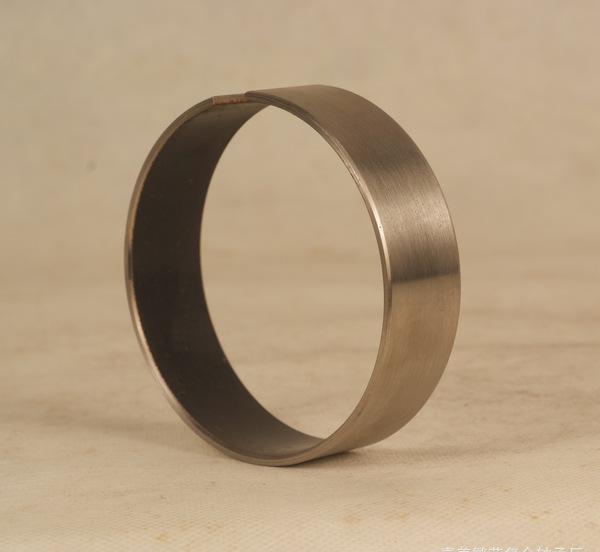

DU Bushing is wrapped by steel backing, Sinter bronze layer and PTFE antiwar surface.
Structure:
1. PTFE with Pb 0.01~0.03mm
2. Porous bronze 0.2~0.3mm
3. Bronze backing 0.7~2.3mm
Characteristics:
DU bushing(PVB011) has good wear and friction performance over a wide range of load, speed and temperature conditions without lubrication
This self-lubricating bearing also can perform well with lubrication
Bronze backing provides improved corrosion resistance compared with PVB010 ollies bearing
Availability:
Standard cylindrical bush, flanged bushing, thrust washers and strips are available.
Following sizes are standard
0606DU,0808DU,1010DU,1210DU,1415DU,1515DU,1615DU,1815DU,2020DU,2220DU, 2525DU,2825DU,3030DU,3530DU,3840DU,4030DU,4040DU,4530DU,5040DU,5550DU, 6050DU,6550DU,7060DU,7560DU,8050DU,8560DU,9060DU,9560DU,10080DU
Special designs can be made according to your requirement
Lead free type is also available
Applications:
Plain dry bushing (PVB011) is widely used in steel metallurgy industry, cement grouting pumps and scrow conveyers of machine, marine and offshore equipment, dyeing machinery and so on
Technical Data:
| Specific load capacity (static) | ≤ 250 [ N/mm² ] | |
| Specific load capacity (dynamic) | ≤ 140 N/mm² at low speeds | |
| Specific load capacity(rotating oscillating) | ≤60N/mŽ¡ | |
| Friction value | 0.03 to 0.25 µ | |
| Temperature | -200 to +280 [ °C ] | |
| Max. dry running Pv (Short-term operation) | 3.6N/mŽ¡ï¹¡m/s | |
| Max. dry running Pv (Continuous operation) | 1.8N/mŽ¡ï¹¡m/s | |
| Max. speed (dry running) | 2m/s | |
| Max. speed (Hydrodynamic operation) | ＞2m/s | |
To know more about other DU bearing, please contact us freely.
