Oil Free Bronze Graphite Self Lube Sliding Plate Bearing OILES 500SP
Price:
negotiated
MOQ:
Standard Size Bushing No Minimum Order Quantity
Delivery Time:
negotiated
Brand:
TOB Brass Bronze Bearings
Product Description
Oil Free Bronze Graphite Self Lube Wear Plates OILES 500SP Bearing
Oil-Free Slide Plates Wear Plate OILES 500SP Bearing
Oil-free Slide Plates Wear Plate,
Materials OILES #500SP
Shop China for all your Oil-Free Slide Plates and Oil-free Slide Plates needs. we offer free CAD download, short lead times, competitive pricing
Wear Plates, Strips, Liners and Shoes | Bi-Metal, Cam Dwell, L-Gibs, V-Blocks, Custom Designed

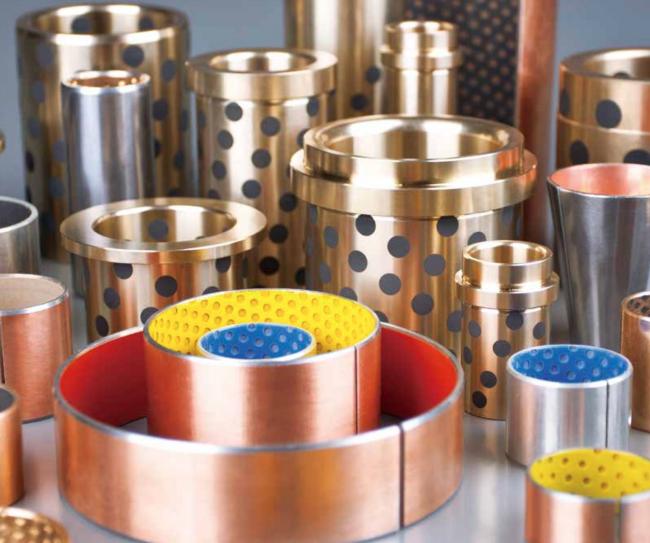

Oilless Bronze Graphite Copper Washers Sliding plate Bearing Bushing
The future is here
The opportunities are limitless
The opportunities are limitless
| Standard Parts OILES #500 SWP Oilless Thin Wear Plate (All dimensions in MM) |
Product Description
|
Size
|
Customized
|
|
Material
|
CuZn25AI5Mn4Fe3
|
|
Color
|
Natural
|
|
Certification
|
ISO9001, TS16949
|
|
Density
|
8g/cm³
|
|
Hardness
|
>210HB
|
|
Tensile strength
|
>750N/mm²
|
|
Yeild strength
|
>340N/mm²
|
|
Elongation
|
>12%
|
|
Coefficient of linear expansion
|
2.2*10-5/℃
|
|
Heat-conducting Coefficient
|
38~55W(/m.k)
|
|
Flexibility Coefficient
|
100~140KN/mm²
|
|
Temp. Limits
|
-40~+200 ℃
|
|
Max. Dynamic Load
|
98 N/mm²
|
|
Max.speed
|
Dry Lubrication 0.3m/s,Oil Lubrication 1m/s
|
|
Max.PV
|
Dry Lubrication 1.65N/mm²*m/s,Oil Lubrication 3.25N/mm²*m/s
|
|
Friction
|
Dry Lubrication 0.12~0.16,Oil Lubrication 0.03~0.08
|
|
Application
|
consecutive casting and rolling machines, mine-exploiting equipments, ships, steam engine
|
| Standard No | W | L | a | b | Sketch |
| SWP -18*50 | 18 | 50 | - | 20 | A |
| SWP -18*75 | 75 | 45 | |||
| SWP -18*100 | 100 | 70 | |||
| SWP -18*150 | 150 | 60 | B | ||
| SWP -28*50 | 28 | 50 | - | 20 | A |
| SWP -28*75 | 75 | 45 | |||
| SWP -28*100 | 100 | 70 | |||
| SWP -28*150 | 150 | 60 | B | ||
| SWP -38*50 | 38 | 50 | - | 20 | A |
| SWP -38*75 | 75 | 45 | |||
| SWP -38*100 | 100 | 70 | |||
| SWP -38*150 | 150 | 60 | B | ||
| SWP -48*75 | 48 | 75 | - | 45 | A |
| SWP -48*100 | 100 | 70 | |||
| SWP -48*125 | 125 | 95 | |||
| SWP -48*150 | 150 | 60 | B | ||
| SWP -75*75 | 75 | 75 | 45 | 45 | C |
| SWP -75*100 | 100 | 70 | |||
| SWP -75*125 | 125 | 95 | |||
| SWP -75*150 | 150 | 60 | D | ||
| SWP -100*100 | 100 | 100 | 70 | 70 | C |
| SWP -100*125 | 125 | 95 | |||
| SWP -100*150 | 150 | 60 | D |
| OILES 500SP Bearing | |
| Content | SPB,SPF,SPFG,SPW,SGF,SGB,SWP,SLP,SLC,SLI,JEGB, JNA,JESW,JSPW,HGB250,JCBS,JCBSP,JDBS series... |
| Size | METRIC SIZE |
Product Tags:
Bronze Graphite Self Lube Wear Plates
Oilless Self Lube Wear Plates
500SP Bearing Self Lube Wear Plates
