Tin Bronze Lead Bimetal Bearing Bushes High Hardness
Tin Bronze Lead Bimetal Bearing Bushes High Hardness
Bushing Bearings - Find The Tuleje Cylindryczne
Bimetal bearing supplier from China, Tuleje cylindryczne, łożyska katalog
- universal bearing material
- material: steel-sintered bronze-Pb+PTFE
- leadfree sliding material
- material: steel/bronze
- universal bearing material (on bronze backing material)
- material: bronze-sintered bronze-Pb+PTFE
- canal locks, weirs, offshore
- material: bronze with solid lubricant pockets
- agriculture
- material: CuSn8 with lubrication indentations
- przeznaczony do pracy ze smarem lub olejem
- materiał: stal-spiek-POM z kieszonkami smarnymi
- transport industry
- material: steel-sintered bronze-PTFE+PEEK+fillers
WE ASSIST
IN THE ENGINEERING BIMETAL BEARINGS BUSHING DESIGN PROCESS
AND UNDERTAKE NON-STANDARD PROJECTS
THIN-WALLED BIMETALLIC BEARINGS WITH STEEL-BACKED BEARINGS CHEAP PRICE MANUFACTURER IN CHINA.
Our company has advantages
LARGEST SELECTION
OF SLIDING BUSHING MATERIALS IN THE COUNTRY
You can find the largest bimetal bearings Automobile Plain Bushes at viiplus china. Choose from your bushing bearings and order right away.JF bimetal composite bearings with high quality low carbon steel as substrate, the surface of the sinter with low friction properties of copper alloy (CuPb10Sn10 CuPb6Sn6Zn3 CuPb24Sn4, CuPb30) as wear-resisting layer of bearing, can need according to the operating conditions of copper alloy surface processing of various types of oil tank, oil hole, hole, etc., in order to suit to cannot continue to go hard or go occasion.The material can get good bonding strength and best bearing capacity through secondary sintering and secondary extrusion.
| BIMETAL BUSHINGS | BIMETAL BUSHINGS | BIMETAL BUSHINGS | BIMETAL BUSHINGS | BIMETAL BUSHINGS | BIMETAL BUSHINGS | |
| CuPb10Sn10 | CuPb24Sn4 | CuPb6Sn6Zn3 | CuSn10 | CuSn6.5P | AlSn20Cu | |
| Cu | allowance | allowance | allowance | allowance | allowance | 0.7~1.3 |
| Pb | 9.0~11.0 | 21.0~27.0 | 2.0~4.0 | 0.1 | 0.1 | - |
| Sn | 9.0~11.0 | 3.0~4.5 | 5.0~7.0 | 9.0~10.0 | 6.0~6.8 | 17.5~22.5 |
| Zn | 0.5 | 0.5 | 5.0~7.0 | 0.3 | 0.3 | - |
| P | 0.1 | 0.1 | 0.1 | 0.1 | 0.1~0.3 | - |
| Fe | 0.5 | 0.7 | 0.6 | 0.5 | 0.6 | 0.7 |
| Ni | 0.5 | 0.3 | 0.3 | 0.5 | 0.5 | 0.1 |
| Al | - | - | - | - | - | allowance |
| Other | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |

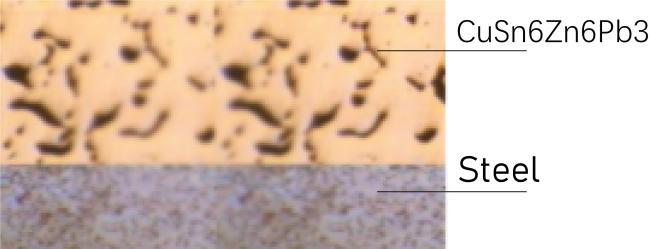

Part of the bearing material composition of the structure
With carbon steel as matrix, surface sintered bronze powder; It is suitable for rocking motion and rotating motion under high load and low speed. It has the characteristics of low friction coefficient, good wear resistance, long service life and good bite resistance. The surface of copper alloy layer can be processed into various types of oil groove, oil storage pit and oil hole according to the working conditions, so as to be suitable for occasions where refueling is not possible or difficult.
Application
Products are widely used in construction machinery used for supporting wheel shaft sleeve, supporting belt wheel shaft sleeve, tensioning wheel shaft sleeve, automotive balance shaft sleeve, steel plate sleeve, steering knuckle-main shaft sleeve, connecting rod shaft sleeve, valve rocker arm shaft sleeve, camshaft shaft sleeve, differential shaft sleeve, thrust gasket, piston pump side piece, gear pump side piece.
Product Tags:
High Hardness Bimetal Bearing Bushes
CuPb10Sn10 Copper Bimetal Bearing Bushes
Tin Bronze Lead Bimetal Bearing Bushes
 |
