The bimetal bushing is steel backed with high-quality with tin-lead-bronze alloy(CuSn10Pb10) sintered on its surface.

Support wheel Bushings, guide wheel bushing, bushing replacement parts

- Con Rod Bearing Bush
- Sleeve Bush for Rocker Arm
- Cam Shaft Bearing Bush

Bimetal Lead-Free Plain Bearings

Bushings Selection

Bimetal bearing bushes have high-performance environmentally friendly dual metal bearings that are customer-specified products. bimetal bearing bushes use low-carbon steel plate as supporting base and powder metallurgy sintering and rolling processes to form a leadless CuSn8Ni steel-copper alloy product. The materials in this product meet RoHS directory/regulation/rule, under certain circumstances can substitute for JF800 products. bimetal bearing bushes have a high load-bearing capacity and good wear-resistance. Its shortcoming is that it cannot be used without oil lubrication. In places where oil lubrication is sufficient, bimetal bearing bushes have superior performance.

Our sales assistant team will provide bronze bushings service for each of your needs.

Quick Response

Once we receive your request, we will contact you, and the sliding bushings qualified type will be recommended to you within 24 hours.

The designing of oil indentations
In order to fully lubricate the bush when in the performance, the indentations with size as following are recommended. They should be manufactured according to the standard below if without special requirements.
Bush O.D	More than to	14~22	22!44	40~50	50~100	100~180
Lubricating hole		3	3	3	6	7
The lubricating hole should be away from the butt joint and loading area and designed to be easy-oil-feeding as well.



Normal thickness of the JF bimetal and their tolerances
Tolerance Thickness	1	1.5	2	2.5	3	3.5	4	5
Thickness of steel backing	0.6	1	1.4	1.9	2.3	2.8	3.2	4
Thickness of bronze layer	0.4	0.5	0.6	0.6	0.7	0.7	0.8	1.0
Manufacturable wall thickness	1+0.25 +0.15	1.5+0.25 +0.15	2+0.25 +0.15	2.5+0.25 +0.15	3+0.25 +0.15	3.5+0.25 +0.15	4+0.25 +0.15	4+0.25 +0.15
Manufactured wall thickness	1-0.025	1.5-0.03	2-0.035	2.5-0.04	3-0.045	3.5-0.05	4-0.055	4-0.06



JF JF Bimetal Bushing chemical composition
Tolerance Thickness	JF-800	JF-720	JF-700	JF-20
Cu	Remainder	Remainder	Remainder	0.7~1.3
Pb	9.0~11.0	21.0~27.0	26.0~33.0	-
Sn	9.0~11.0	3.0~4.5	0.5	17.5~22.5
Zn	0.5	0.5	0.5	-
P	0.1	0.1	0.1
Fe	0.7	0.7	0.7	0.7
Ni	0.5	0.5	0.5	0.1
Sb	0.2	0.2	0.2	-
Ai	-	-	-
Si	-	-	-	0.7
Mn	-	-	-	0.7
Ti	-	-	-	0.2
Other	0.5	0.5	0.5	0.5



Product Tags:

Cylindrical Bimetal Bearing Bushes

Sintered Bimetal Bearing Bushes

Welded Joint Bimetal Bearing Bushes

JFBimetel Bushing Physical properties
Physical properties		JF-800	JF-720	JF-700	JF-20
Max. static load pressure N/mm2		150	130	120	100
Tensile strength N/mm2		150	150	200	200
Max. speed(oil) m/s		5	10	15	25
Friction coef(Oill)		0.06~0.14	0.06~0.16	0.08~0.16	0.08~0.17
PV limit N/mm2 m/s	Grease	2.8	2.8	2.5	-
	Oil	10	10	8	6
“Sapphire Fatigue Calss Mpa		125	115	105	<span 100%"="" style="font-style: inherit; font-weight: inherit; margin: 0px; outline: none 0px; padding: 0px; border: 0px none; box-sizing: border-box; transition: all 0.3s ease-in-out 0s;">

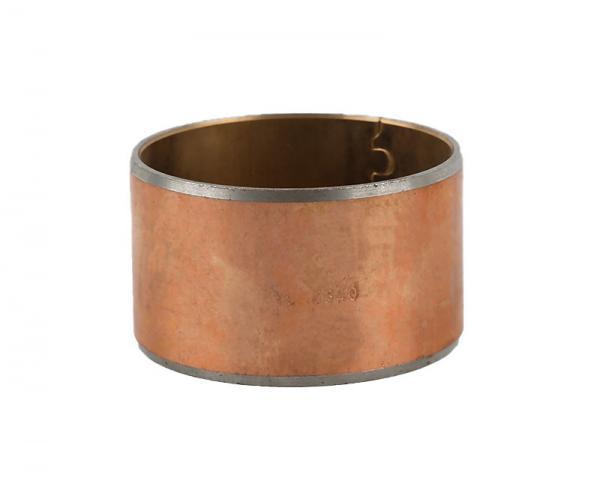

Double Butterfly Welded Joint Sintered Bimetal Bearing Bushes Cylindrical Images
