Graphite Bush C86300 Oil Free Bearing CNC Processing
Graphite Bush Wholesale C86300 Oil-Free Bearing
Shop Bushing Material Graphite Impregnated Brass - Plain & Self-Lubricating Bearings from china.
C86300.pdf Bronze Bearing
Bronze Graphite Bushing Material Equivalent Composition ASTM C86300. We offer wholesale and bulk bronze graphite bush orders for businesses and commercial use from china. Bulk orders are available in our standard Tolerances. as well as a variety of other bronze oilless bushing brass cast bronze material. Large orders include small size and large size and/or customized flange sizes are made to order from china. Please contact us by email today and make sure to specify your intended order quantity
so that we can reach out to you with more information.
Alloy materials
Manganese Bronze bushings with graphite plugs
¾” ID x 1-1/8” OD x ¾” long
1” ID x 1-3/8” OD x ¾” Long
1-1/4” ID x 1-5/8” OD x ¾” Long
| Model | JDB-1 | JDB-2 | JDB-3 | JDB-4 | JDB-5 | ||
|---|---|---|---|---|---|---|---|
| Grade China Brands GB1776-87 |
ZCuZn25 AI6Fe3Mn3 |
ZCuSn6Zn6Pb3 | ZCuAI10Fe3 | ZCuSu10P1 | Steel+ZCuSn6Zn6Pb3 | HT250 | GCr15 |
| International ISO1338 |
GCuZn25 AI6Fe3Mn3 |
GCuSn6Zn6Pb3 | GCuAI10Fe3 | CuSn12 | Steel+CuSn6Zn6Pb3Fe3Ni5 | - | B1 |
| Germany DIN |
G-CuZn25 AI5 |
GB-CuSn5Zn5Pb5 | GB-CuAI10Ni | GB-CuSn10 | Steel+CuSn6Zn6Pb3Ni | - | 100Cr6 |
| Japanese JIS |
HBsC4 | BC6 | AIBC3 | BC3 | BC6 | FC250 | SUJ2 |
| United States ASTM/UNS |
C86300 | C83600 | C95500 | C90800 | C83600 | Class40 | 52100 |
| British Standard | HTB2 | LG2 | AB1 | PB4 | LG2 | - | - |
Material alloy chemical composition
| Chemical Elements | JDB-1 | JDB-2 | JDB-3 | JDB-4 | JDB-5 | ||
|---|---|---|---|---|---|---|---|
| Cu ( % ) | Rest | Rest | Rest | - | - | ||
| Sn ( % ) | - | 6 | - | 10 | 6 | - | - |
| Zn ( % ) | 25 | 6 | - | - | 6 | - | - |
| Ni ( % ) | - | - | - | - | - | - | - |
| AI ( % ) | 6 | - | 10 | - | - | - | - |
| Fe ( % ) | 3 | - | 3 | - | - | Rest | Rest |
| Mn ( % ) | 3 | - | - | - | - | 0.905 - 1.3 | 0.20 - 0.40 |
| Cr ( % ) | - | - | - | - | - | - | 1.30 - 1.65 |
| C ( % ) | - | - | - | - | - | 2.5 - 4 | 0.95 - 1.05 |
| Si ( % ) | - | - | - | - | - | 1.0 - 1.3 | 0.15 -0.35 |
| Pb ( % ) | - | 3 | - | - | 3 | - | - |
Technical Parameters
Product Tags:C86300 Bronze Graphite Bush
50*62*50mm Graphite Bush
C86300 Graphite Plugged Bushings
| Performance | JDB-1 | JDB-2 | JDB-3 | JDB-4 | JDB-5 | ||
|---|---|---|---|---|---|---|---|
| Max.load P ( N/mm² ) | 100 | 60 | 70 | 60 | 250 | ||
| Max.speed V ( m/s ) | Dry0.4 oil5 | 2 | 2 | 0.5 | 0.1 | ||
| Max.PV ( N/mm²·m/s ) | 3.8 | 0.5 | 0.6 | 0.8 | 2.5 | ||
 |
|||||||

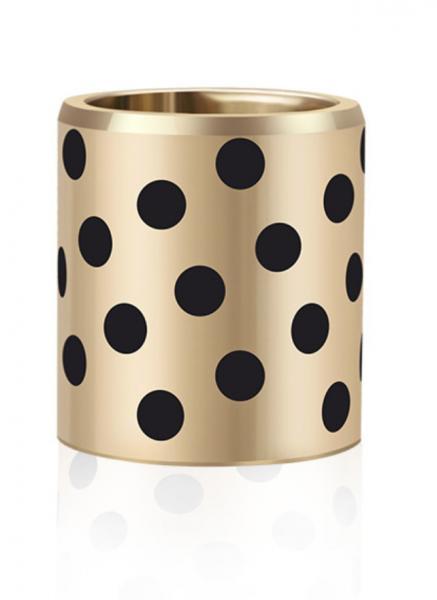

Graphite Bush Wholesale C86300 Oil-Free Bearing Images |
|||||||
