Wiegand RJ45 752X480 600mA 1.8" TFT QR Code Scanner

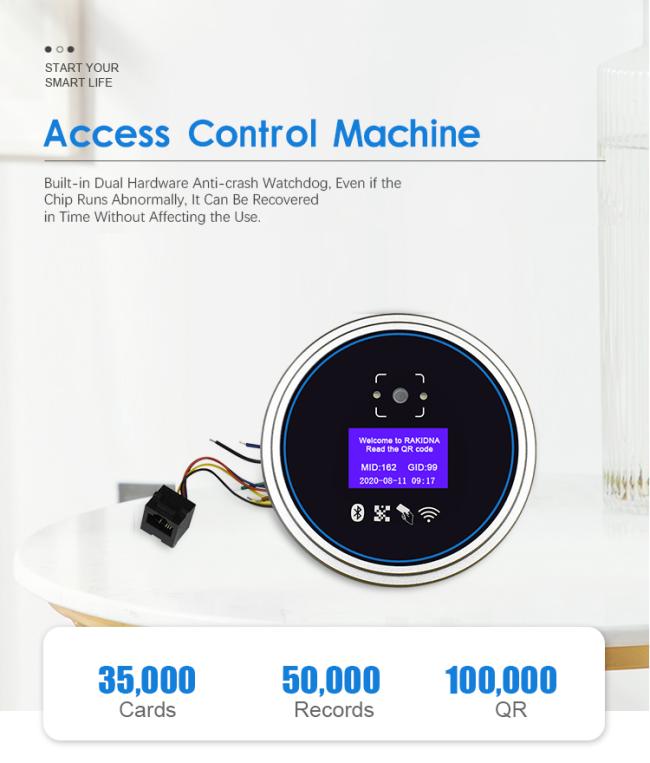

Rakinda RD008 Wiegand TCP IP Door Security Access Control Systems with QR Code Scanner IC Card Reader
The QR Code Scanning Component Parameters
1. Image sensor: 752X480;
2. Identification lighting: white LED
3. Two-dimensional code recognition: 2D PDF417, QR CODE, DATA MATRIX, support mobile phone mirror
recognition and paper two-dimensional code recognition
4. One-dimensional code recognition: CODE 128, UCC / EAN-128, AIM-128, EAN-8, etc .;
5. Identification distance: 10-55mm;
6. 6.Identification angle: 360 degrees full angle
Display Components:
1. 1.8 "TFT true color screen
2.128 * 160 resolution
3.Display area: 28mmX35mm
Parameters with QR Code Scanner IC Card Reader:
| Image Sensor | 752X480 |
| Light Source | White LED |
| Symbologies | 2D: PDF417, QR CODE, DATA MATRIX,Support Mobile Phone Mirror Recognition and Paper 2D Code Recognition 1D: CODE 128, UCC/EAN-128, AIM-128, EAN-8 etc. |
| Reading Distance | 10-55mm |
| Scan Angle | 360° Full Angle |
| Display Components | |
| Screen | 1.8" TFT true color screen |
| Resolution | 128 * 160 |
| Display Area | 28mmX35mm |
| Input and Output Parameters | |
| Power Input | 9-18VDC |
| Working Current | < 600mA |
| Can read like ISO14443Aor ISO14443B Card Serial Number |
Such as Second-generation ID card, FM1208 CPU Card, M1 Card (Mifare S50, Mifare S70 IC card), SRIX4K, etc. |
| Barcode or 2D Code | Wiegand 26/34 output, output IC card number (common read |
| Input | head function) and associated card number output in compliance with QR code reservation rules |
| Communication Interface | RJ45 10/100M TCP/IP, Extensible Wireless WIFI, Bluetooth |
| Communication Protocol | Support TCP / UDP / HTTP |
| Voice output | comes with voice, amplifier and speaker output, nearly 150 kinds of voice output, customizable voice |
| Device Input | 12V DC power input, 1 door magnetic input, 1 door button input, 1 alarm input |
| Equipment output | 1 channel 3A relay output, 1 channel unlock, 1 channel expansion can control door opener, light, water valve, etc. |
| Wiegand output | Wiegand 26/34 output |
| Dimensions | |
| Installation size | 110mm * 25-34.62mm (L*H), Compatible with standard 86 box |
RD008 Round 2D IC Card Access Control Machine-data...
The Equipment Input and Output Parameters
1. Power input: 9-18VDC
2. Working current: <600mA
3. readable ISO14443A type card serial number, or custom read sector content
4. Barcode or QR code scanning input
5. Wigan 34/26 output, output IC card card number (common reading function) and associated card number
output in accordance with QR code reservation rules
6. Communication interface: RJ45 10 / 100M TCP / IP, expandable wireless,WIFI, Bluetooth
7. Communication protocol: Support TCP / UDP / HTTP
8. Voice output: comes with voice, power amplifier and speaker output, nearly,150 kinds of voice output,
customizable voice
9. Equipment input: 12V DC power input, 1 door magnetic input, 1 door button, input, 1 alarm input
10. Equipment output: 1 channel 3A relay output, 1 channel unlock, 1, channel expansion can control door opener,
light, water valve, etc.
