7x2.8mm CE Approved Galvanized Steel Cable , Hot Dip Galvanized Steel Wire For Fencing
7x2.8mm CE Approved Galvanized Steel Cable , Hot Dip Galvanized Steel Wire For Fencing
Galvanized Steel Core Wire for ACSR Conductor as per ASTM B 498
|
Wire Diamater(mm) |
Diamater Tolerance(mm) |
Weight of Zinc-coating(g/m2) |
Stress at 1% Extension,Min(Mpa) |
Tensile Strength Min.(Mpa) |
Elongation in 250mm,Min(%) |
|
1.57-1.90 |
+0.04,-0.03 |
210 |
1310 |
1450 |
3.0 |
|
Over 1.9-2.3 |
+0.04,-0.03 |
220 |
1310 |
1450 |
3.0 |
|
Over 2.3-2.7 |
+0.05,-0.05 |
230 |
1280 |
1410 |
3.5 |
|
Over 2.7-3.1 |
+0.05,-0.05 |
240 |
1280 |
1410 |
3.5 |
|
Over3.1-3.5 |
+0.08,-0.05 |
260 |
1240 |
1410 |
4.0 |
|
Over 3.5-3.9 |
+0.08,-0.05 |
270 |
1240 |
1410 |
4.0 |
|
Over 3.9-4.5 |
+0.1,-0.08 |
275 |
1170 |
1380 |
4.0 |
|
Over 4.5-4.8 |
+0.1,-0.08 |
300 |
1170 |
1380 |
4.0 |
Galvanized Steel Wire Strand for ACSR Conductor as per ASTM A 475
|
Norminal Diamater of Strand |
No. of Wires |
Diamater of Wire |
Tolerance of Wire |
Weight |
Zinc-coating |
Breaking Loading |
|
mm |
- |
mm |
mm |
Kg/Km |
g/m2 |
KN |
|
3.18 |
7 |
1.04 |
±0.05 |
48 |
122 |
8.14 |
|
3.97 |
7 |
1.32 |
±0.05 |
76 |
122 |
13.078 |
|
4.76 |
7 |
1.57 |
±0.08 |
109 |
153 |
17.748 |
|
5.56 |
7 |
1.83 |
±0.08 |
146 |
153 |
24.02 |
|
6.35 |
7 |
2.03 |
±0.08 |
180 |
183 |
29.581 |
|
7.14 |
7 |
2.36 |
±0.10 |
244 |
214 |
39.812 |
|
7.94 |
7 |
2.64 |
±0.10 |
305 |
244 |
49.82 |
|
9.52 |
7 |
3.05 |
±0.10 |
407 |
259 |
68.503 |
|
11.11 |
7 |
3.68 |
±0.13 |
595 |
275 |
92.523 |
|
12.7 |
7 |
4.19 |
±0.13 |
770 |
275 |
119.657 |
| ASTM A 475-2003 | ||||||||
| Norminal Diameter | No.of wires | Diameter of wire | Tolerance of wire | Weight | Zinc coating | Broken Loading | ||
| Inch | mm | pcs | mm | ± mm | Kgs/100M | G/M2 | Lbf | Kn |
| 1/8" | 3.18 | 7 | 1.04 | 0.05 | 48 | 122 | 1830 | 8.14 |
| 5/32" | 3.97 | 7 | 1.32 | 0.05 | 76 | 122 | 2940 | 13.078 |
| 3/16" | 4.76 | 7 | 1.57 | 0.08 | 109 | 153 | 3990 | 17.748 |
| 7/32" | 5.56 | 7 | 1.83 | 0.08 | 146 | 153 | 5400 | 24.02 |
| 1/4" | 6.35 | 7 | 2.03 | 0.08 | 180 | 183 | 6650 | 29.581 |
| 9/32" | 7.14 | 7 | 2.36 | 0.10 | 244 | 214 | 8950 | 39.812 |
| 5/16" | 7.94 | 7 | 2.64 | 0.10 | 305 | 244 | 11200 | 49.82 |
| 3/8" | 9.52 | 7 | 3.05 | 0.10 | 407 | 259 | 15400 | 68.503 |
| 7/16" | 11.11 | 7 | 3.68 | 0.13 | 595 | 275 | 20800 | 92.523 |
| 1/2" | 12.7 | 7 | 4.19 | 0.13 | 770 | 275 | 26900 | 119.657 |
| 9/16" | 14.29 | 7 | 4.78 | 0.13 | 1000 | 305 | 35000 | 155.688 |
| 5/8" | 15.88 | 7 | 5.26 | 0.13 | 1211 | 305 | 42400 | 188.605 |
The other products of ours
Galvanized steel wire
Galvanized Steel Core Wire
Galvanized steel wire strand
Galvanized steel wire cable
Zinc-coated steel wire strand
Galvanized steel wire strand for guy wire
Galvanized steel wire for stay wire
Galvanized steel wire for overhead transmission line

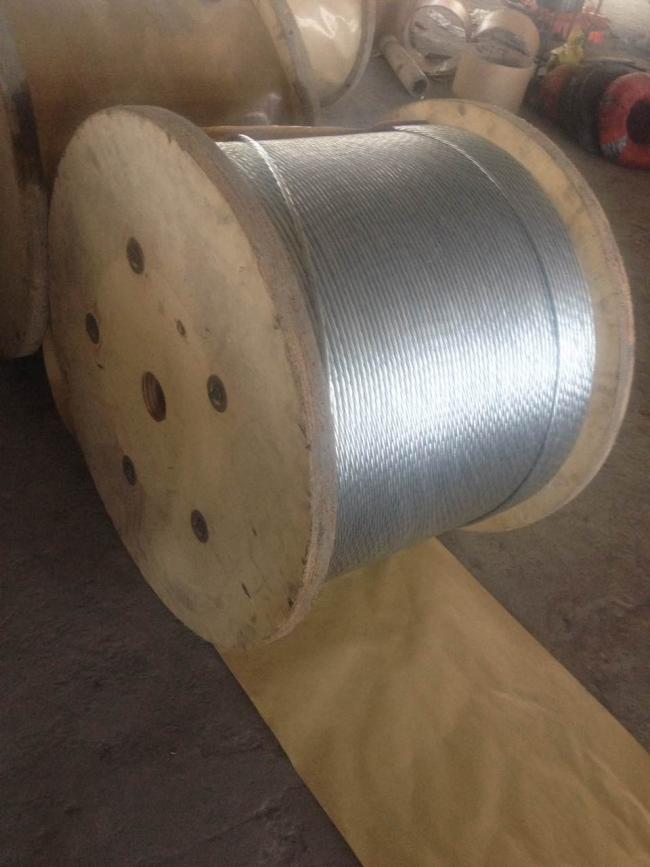

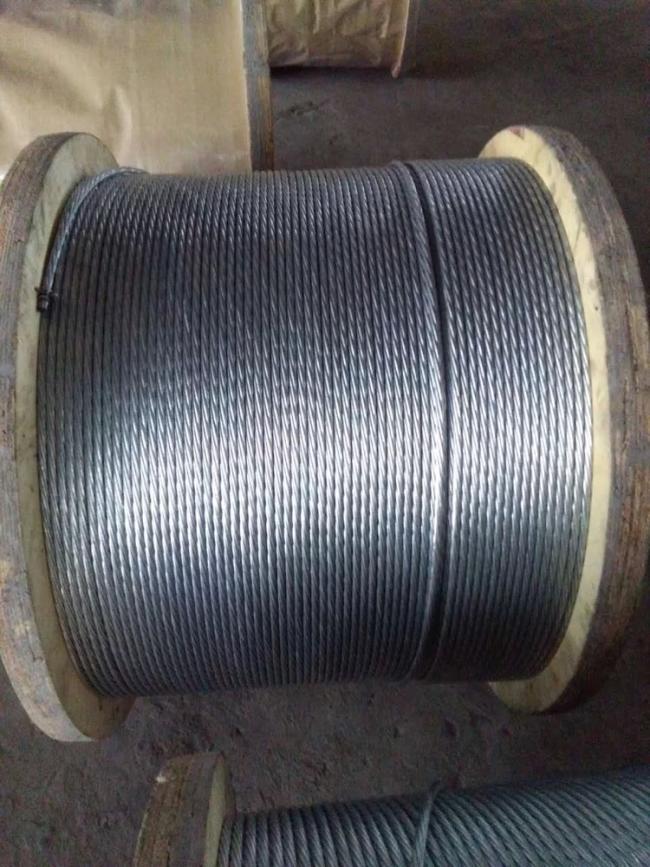

Our products photos

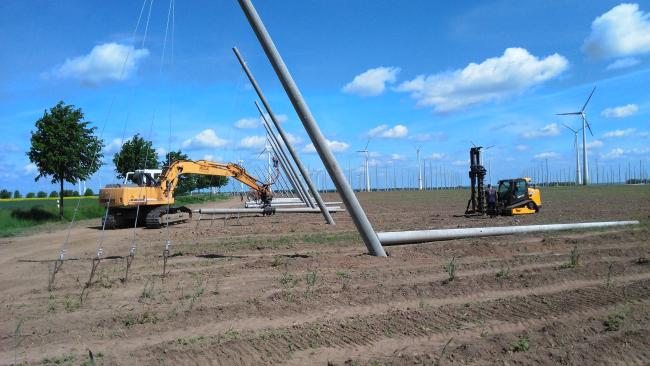

Application of our products
