1.68mm Zinc Coating Uniformity Galvanized Steel Wire Tensile Strength 900 Mpa-2200 Mpa
1.68mm Galvanized Steel Wire
The main size and Technical date we produce in the below:
|
Norminal Dia. (mm) |
Tolerance in Dia. (mm) |
Zinc-coating (g/m2) |
Min.Stress at 1% Extension(MPA) |
Min.Ultimate Tensile Strength(MPA) |
Min.Elongation in 250mm(%) |
Ratio of Mandrel Dia.to Wire Dia. |
|
1.6 |
+0.04,-0.03 |
210 |
1310 |
1450 |
3.0 |
3 |
|
1.8 |
+0.04,-0.03 |
210 |
1310 |
1450 |
3.0 |
3 |
|
1.9 |
+0.04,-0.03 |
210 |
1310 |
1450 |
3.0 |
3 |
|
2.0 |
+0.04,-0.03 |
220 |
1310 |
1450 |
3.0 |
3 |
|
2.2 |
+0.04,-0.03 |
220 |
1310 |
1450 |
3.0 |
3 |
|
2.4 |
+0.05,-0.05 |
230 |
1280 |
1410 |
3.5 |
4 |
|
2.6 |
+0.04,-0.03 |
230 |
1280 |
1410 |
3.5 |
4 |
|
2.8 |
+0.04,-0.03 |
240 |
1280 |
1410 |
3.5 |
4 |
|
3.0 |
+0.04,-0.03 |
240 |
1280 |
1410 |
3.5 |
4 |
|
3.2 |
+0.08,-0.05 |
260 |
1240 |
1410 |
4.0 |
5 |
|
3.4 |
+0.08,-0.05 |
260 |
1240 |
1410 |
4.0 |
5 |
|
3.6 |
+0.08,-0.05 |
270 |
1240 |
1410 |
4.0 |
5 |
|
3.8 |
+0.1,-0.08 |
270 |
1170 |
1380 |
4.0 |
5 |
|
4.0 |
+0.08,-0.05 |
275 |
1170 |
1380 |
4.0 |
5 |
The other products of ours:
Galvanized steel wire
Zinc-coated steel Wire
Galvanized steel wire cable
Galvanized steel wire strand
Zinc-coated steel wire strand
Guy Wire
Stay wire
Overhead ground wire

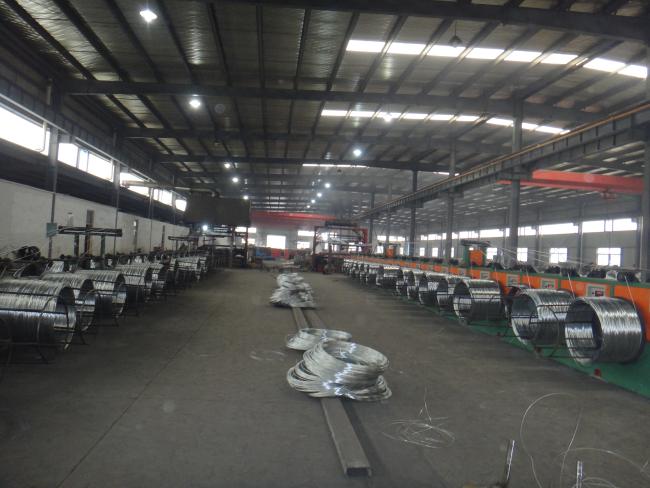

Our workshop

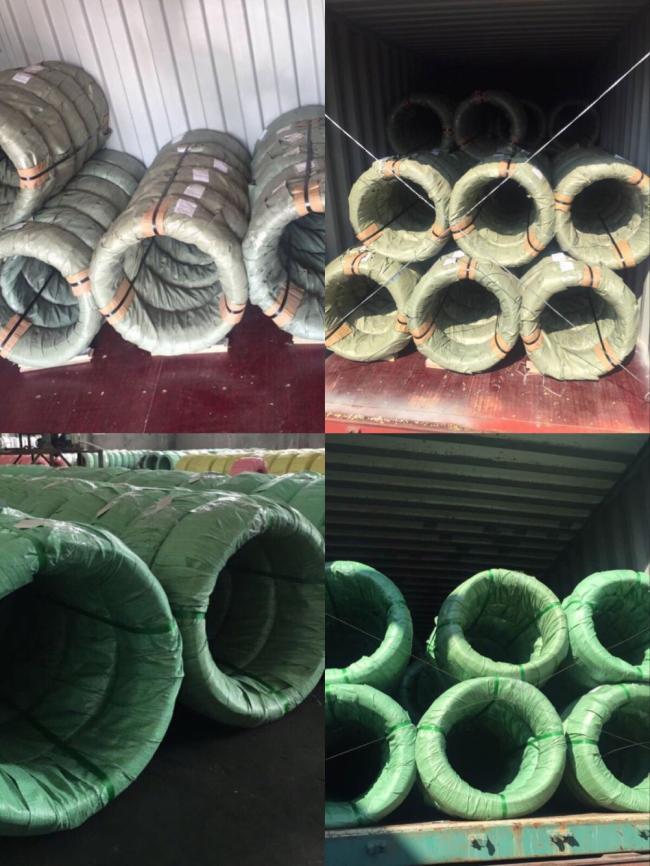

Loading photos
