Galvanized Steel Optical Ground Wire
Galvanized Steel Core Wire for ACSR Conductor
Applications
The galvanized single steel wires or stranded steel wires are suitable for cores of ACSR to improve its tensile strength. And they can also be used in the aerial transmission line as the line material of ground connection to avoid the lightning strike. Messenger Wire, Overhead Ground or Static Wire, Guy Wire.
Standard
GSW meets or exceeds the following ASTM specifications:
• ASTM A-363 Zinc-Coated (Galvanized) Steel Overhead Ground Wire Strand
• ASTM A-475 Zinc-Coated Steel Wire Strand
• ASTM A-925 -5 % Aluminum-Mischmetal Alloy-Coated Steel Overhead Ground Wire Strand
• ASTM A-855 Zinc-5 % Aluminum-Mischmetal Alloy-Coated Steel Wire Strand
• ASTM A-640 Zinc-Coated Steel Strand for Messenger Support of Figure 8 Cable.
| Norminal Diameter |
Cross-section (Mm2 ) |
Min.Tensile Strength (MPA) |
Caculated Breaking Loading (KN) |
Min. zinc-coating (g/m2) |
Max DC.resistance at 20 ℃Ω/km |
Approx.weight (Kg/km) |
|
| mm | AWG | ||||||
| 2.052 | 12 | 3.307 | 1340 | 4.5 | 0.103 | 25.64 | 21.80 |
| 2.304 | 11 | 4.169 | 1340 | 5.6 | 0.115 | 20.34 | 27.49 |
| 2.589 | 10 | 5.260 | 1340 | 7.1 | 0.130 | 16.12 | 34.66 |
| 2.904 | 9 | 6.633 | 1340 | 8.9 | 0.145 | 12.78 | 43.65 |
| 3.264 | 8 | 8.367 | 1340 | 11.2 | 0.163 | 10.14 | 55.14 |
| 3.477 | 7 | 9.495 | 1310 | 12.4 | 0.174 | 8.93 | 62.57 |
| 3.665 | 7 | 10.55 | 1280 | 13.5 | 0.183 | 8.04 | 69.48 |
| 3.934 | 6 | 12.16 | 1240 | 15.1 | 0.197 | 6.93 | 80.13 |
| 4.115 | 6 | 13.30 | 1210 | 16.0 | 0.206 | 6.38 | 87.62 |
| 4.392 | 5 | 15.15 | 1170 | 17.7 | 0.220 | 5.60 | 99.84 |
| 4.620 | 5 | 16.76 | 1140 | 19.1 | 0.231 | 5.06 | 110.50 |
| 4.775 | 4 | 17.91 | 1100 | 19.7 | 0.239 | 4.73 | 118.0 |
| 5.189 | 4 | 21.15 | 1070 | 22.6 | 0.259 | 4.01 | 139.34 |
Production process

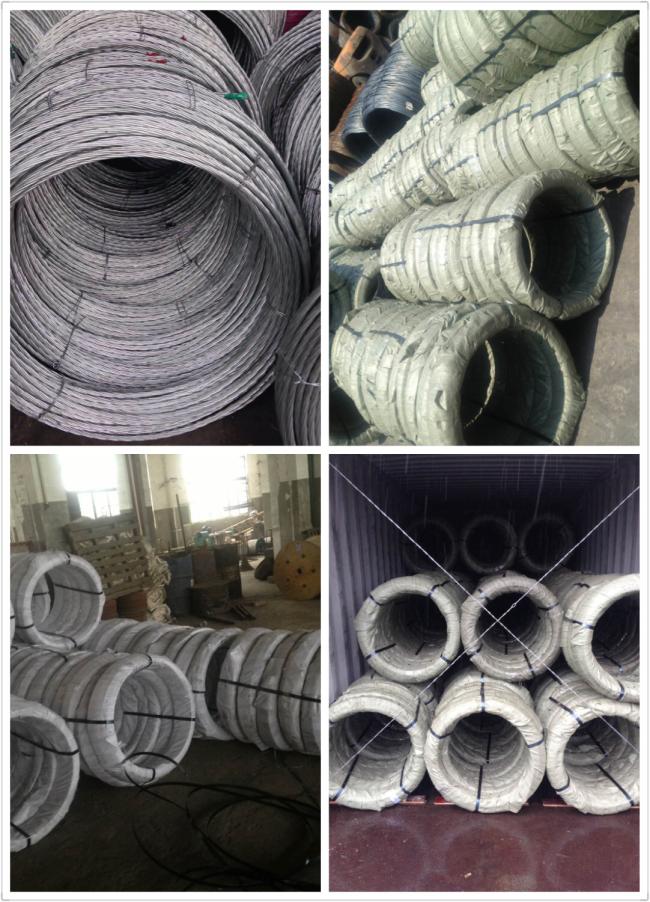

Package&Loading
Package in Export Wooden or Steel Wooden or Steel Drums or in Coil
