High Carbon 7 16 Inch Galvanized Cable Wire , Strand Cable Wire For Overhead Guy Wire
7/16" Zinc-coated(Galvanized) Steel Wire Strand for guy wire,overhead transmission line

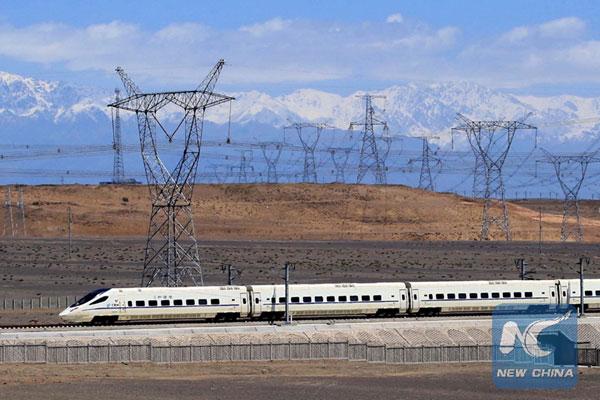

Application:The galvanized steel wire strand is used for overhead ground lines or electrical power transmission lines. Stay or guy wire strands are produced for use with poles, towers, or any other form of guying
Standard
concentrically stranded Galvanized steel wire strand available in class "A", "B" and "C" galvanizing, "A" being the least heavy and "C" being the most heavy. Manufactured without welds per ASTM A-363 or with welds per ASTM A-475. Strands are formed to remain substantially in place when severed.
Galvanized Steel Wire Strand as per ASTM A 475
| Norminal Diamater of Strand | No. of Wires | Diamater of Wire | Tolerance of Wire | Weight | Zinc-coating | Breaking Loading |
| mm | - | mm | mm | Kg/Km | g/m2 | KN |
| 3.18 | 7 | 1.04 | ±0.05 | 48 | 122 | 8.14 |
| 3.97 | 7 | 1.32 | ±0.05 | 76 | 122 | 13.078 |
| 4.76 | 7 | 1.57 | ±0.08 | 109 | 153 | 17.748 |
| 5.56 | 7 | 1.83 | ±0.08 | 146 | 153 | 24.02 |
| 6.35 | 7 | 2.03 | ±0.08 | 180 | 183 | 29.581 |
| 7.14 | 7 | 2.36 | ±0.10 | 244 | 214 | 39.812 |
| 7.94 | 7 | 2.64 | ±0.10 | 305 | 244 | 49.82 |
| 9.52 | 7 | 3.05 | ±0.10 | 407 | 259 | 68.503 |
| 11.11 | 7 | 3.68 | ±0.13 | 595 | 275 | 92.523 |
| 12.7 | 7 | 4.19 | ±0.13 | 770 | 275 | 119.657 |
Package

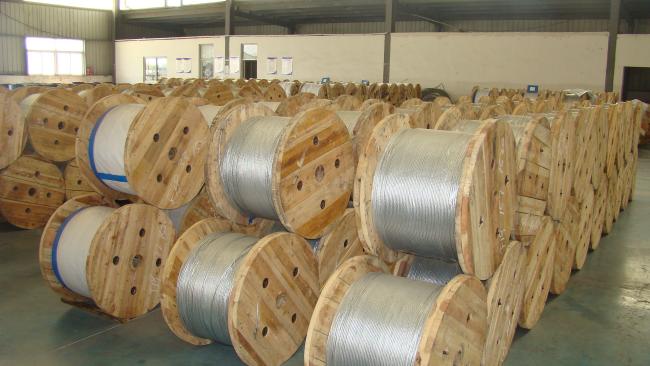

Package in Export Wooden or Steel Wooden or Steel Drums
