Telephone Galvanized Steel Wire Cable 0.30mm - 4.00mm For Armouring In Coil
0.30mm-4.00mm Telephone Cable Galvanized Steel Wire for Armouring in Coil
Galvanized steel wire, Galvanised Iron Wire, Galvanized wire, steel wire, Iron wire, Galvanized wire for fencemens
Material: super carbon steel
Processing by drawing, hot-dip zinc-plating
Standard wire gauge from 8# to 24# Thick zinc-coating layer
1.99.995% pure zinc used
2.Hot dipped tech make the zinc coating good uniformity.
3.Zinc coating: 15-25g/MM2, 30-60g/MM2, 200 250g/MM2. >250g/MM2, >360g/MM2 can be produced as requirement.
Application:
Use for optical cable,spring,fishery,every kind of protective guard and so on.
Manufacture standard:The top quality for each standard. JIS, EN, DIN, GB, ASTM and BOST standard available.
Our packing:
plastic cloth inner,plastic weaving cloth outer
plastic cloth inner,hessian cloth outer
carton, wooden pallet
Weight/coil: 400g, 1kg,2 kg,5kg,6kg.....200kg, it can also be packed as per your requirements.Attention:one head one roll,in single length,without breaks
Our Advantages:
1.Short delivery and timely delivery
2.considerate after-sales service
3.Professional manufacture for Galvanized steel wire with more than 20 years experience
4.Full set of testing equipment to ensure products' performance
5.Strict quality control process
6.We are factory and our price is competitive
| Diameter (mm) |
Tolerance (mm) |
Tensile Strength (MPa) |
Elongation ≥(%) |
Zinc Coating (g/m2) |
Turns |
Test Length (mm) |
Max. D.C. Resistance at 20ºC (ohm/Km) |
| 0.20 | |||||||
| 0.30 | ±0.025 | 340-500 | 10 | 45 | 45 | 50 | 1952.30 |
| 0.45 | ±0.025 | 340-500 | 10 | 85 | 45 | 75 | 867.69 |
| 0.71 | ±0.030 | 340-500 | 10 | 130 | 42 | 75 | 348.56 |
| 0.90 | ±0.035 | 340-500 | 10 | 155 | 33 | 75 | 216.92 |
| 1.25 | ±0.040 | 340-500 | 10 | 180 | 24 | 75 | 112.45 |
| 1.60 | ±0.045 | 340-500 | 10 | 195 | 37 | 150 | 68.64 |
| 2.00 | ±0.050 | 340-500 | 10 | 215 | 30 | 150 | 43.93 |
| 2.50 | ±0.060 | 340-500 | 10 | 245 | 24 | 150 | 28.11 |
| 3.15 | ±0.070 | 340-500 | 10 | 260 | 19 | 150 | 17.71 |
| 4.00 | ±0.070 | 340-500 | 10 | 275 | 15 | 150 | 10.98 |

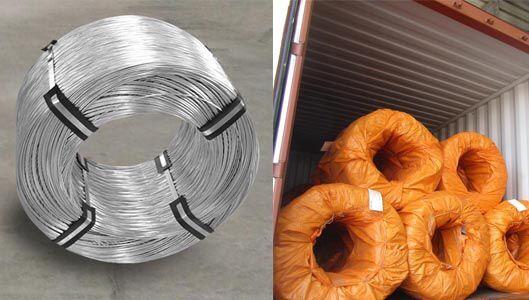

Packing &Loading Photo
