ASTM B232 Aluminium Conductor Steel Reinforced Overhead Bare ACSR Conductor
ACSR Conductor- Aluminum Conductor Steel Reinforced Cable
Application:

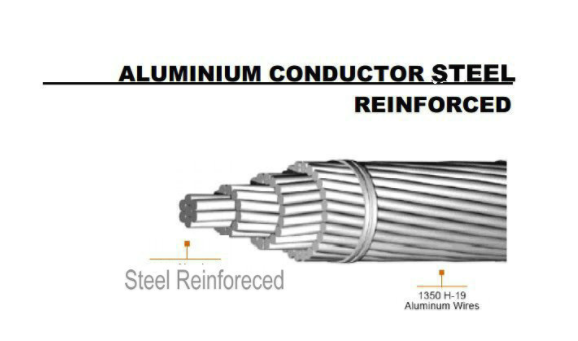

All Aluminium Conductors Steel Reinforced (ACSR) consists of stranded or solid steel core enclosed by strands of aluminum. These ACSR conductors are made available in broad range of steels varying from as low as 6% to as high as 40 %. The superior strength of these conductors is ideal for overhead ground wires, river crossings, installations involving extra long span and many other applications. Manufactured using best quality materials, these conductors ensure high tensile strength. Light in weight, these ACSR conductors a higher corona limit can be acquired causing huge advantages on high as well as extra high voltage overhead lines.
Standard:
ACSR Conductor is designed as ASTMB232,BS215 Part2 ,DIN48204 ,IEC61089 ,other standard.
Specification:
ASTMB232 ACSR CONDUCTOR
| Code Name | Size | No./Dia.of Stranding Wires | Approx. Overall Dia. | Approx. Weight | |
| AWG or MCM | Aluminum | Steel | |||
| No./mm | No./mm | mm | kg/km | ||
| Turkey | 6 | 6/1.68 | 1/1.68 | 5.04 | 54 |
| Swan | 4 | 6/2.12 | 1/2.12 | 6.36 | 85 |
| Swanate | 4 | 7/1.96 | 1/2.61 | 6.53 | 100 |
| Sparrow | 2 | 6/2.67 | 1/2.67 | 8.01 | 136 |
| Sparate | 2 | 7/2.47 | 1/3.30 | 8.24 | 159 |
| Robin | 1 | 6/3.00 | 1/3.00 | 9 | 171 |
| Raven | 1/0 | 6/3.37 | 1/3.37 | 10.11 | 216 |
| Quail | 2/0 | 6/3.78 | 1/3.78 | 11.34 | 273 |
| Pigeon | 3/0 | 6/4.25 | 1/4.25 | 12.75 | 343 |
| Penguin | 4/0 | 6/4.77 | 1/4.77 | 14.31 | 433 |
| Waxwing | 266.8 | 18/3.09 | 1/3.09 | 15.45 | 431 |
| Partridge | 266.8 | 26/2.57 | 7/2.00 | 16.28 | 546 |
| Ostrich | 300 | 26/2.73 | 7/2.12 | 17.28 | 614 |
| Merlin | 336.4 | 18/3.47 | 1/3.47 | 17.5 | 544 |
| Linnet | 336.4 | 26/2.89 | 7/2.25 | 18.31 | 689 |
| Oriole | 336.4 | 30/2.69 | 7/2.69 | 18.83 | 784 |
| Chickadee | 397.5 | 18/3.77 | 1/3.77 | 18.85 | 642 |
| Brant | 397.5 | 24/3.27 | 7/2.18 | 19.61 | 762 |
| Ibis | 397.5 | 26/3.14 | 7/2.44 | 19.88 | 814 |
| Lark | 397.5 | 30/2.92 | 7/2.92 | 20.44 | 927 |
| Pelican | 477 | 18/4.14 | 1/4.14 | 20.7 | 771 |
| Flicker | 477 | 24/3.58 | 7/2.39 | 21.49 | 915 |
| Hawk | 477 | 26/3.44 | 7/2.67 | 21.79 | 978 |
| Hen | 477 | 30/3.20 | 7/3.20 | 22.4 | 1112 |
| Osprey | 556.5 | 18/4.47 | 1/4.47 | 22.35 | 899 |
| Parakeet | 556.5 | 24/3.87 | 7/2.58 | 23.22 | 1067 |
| Dove | 556.5 | 26/3.72 | 7/2.89 | 23.55 | 1140 |
| Eagle | 556.5 | 30/3.46 | 7/3.46 | 24.21 | 1298 |
| Peacock | 605 | 24/4.03 | 7/2.69 | 24.2 | 1160 |
| Squab | 605 | 26/3.87 | 7/3.01 | 24.51 | 1240 |
| WoodDuck | 605 | 30/3.61 | 7/3.61 | 25.25 | 1411 |
| Teal | 605 | 30/3.61 | 19/2.16 | 25.24 | 1399 |
| Kingbird | 636 | 18/4.78 | 1/4.78 | 23.88 | 1028 |
| Rook | 636 | 24/4.14 | 7/2.76 | 24.84 | 1219 |
| Grosbeak | 636 | 26/3.97 | 7/3.09 | 25.15 | 1302 |
| Scoter | 636 | 30/3.70 | 7/3.70 | 25.88 | 1484 |
| Egret | 636 | 30/3.70 | 19/2.22 | 25.9 | 1470 |
| Swift | 636 | 36/3.38 | 1/3.38 | 23.62 | 958 |
| Flamingo | 666.6 | 24/4.23 | 7/2.82 | 25.4 | 1278 |
| Gannet | 666.6 | 26/4.07 | 7/3.16 | 25.76 | 1365 |
| Stilt | 715.5 | 24/4.39 | 7/2.92 | 26.31 | 1372 |
| Starling | 715.5 | 26/4.21 | 7/3.28 | 26.68 | 1466 |
| Redwing | 715.5 | 30/3.92 | 19/2.35 | 27.43 | 1653 |
| Tern | 795 | 45/3.38 | 7/2.25 | 27.03 | 1333 |
| Condor | 795 | 54/3.08 | 7/3.08 | 27.72 | 1524 |
| Cuckoo | 795 | 24/4.62 | 7/3.08 | 27.74 | 1524 |
| Drake | 795 | 26/4.44 | 7/3.45 | 28.11 | 1628 |
| Coot | 795 | 36/3.77 | 1/3.77 | 26.41 | 1198 |
| Mallard | 795 | 30/4.14 | 19/2.48 | 28.96 | 1838 |
| Ruddy | 900 | 45/3.59 | 7/2.40 | 28.73 | 1510 |
| Canary | 900 | 54/3.28 | 7/3.28 | 29.52 | 1724 |
| Rail | 954 | 45/3.70 | 7/2.47 | 29.61 | 1601 |
| Catbird | 954 | 36/4.14 | 1/4.14 | 28.95 | 1438 |
| Cardinal | 954 | 54/3.38 | 7/3.38 | 30.42 | 1829 |
