0.5”（1/2"）PC Steel Wire Strand Grade 270/1860MPA 2.5-3.2 Tons / Coil Packing
0.5”(1/2")PC Steel Wire Strand Grade 270/1860MPA
PC STRAND DESCRIPTION:
Product Name: Prestressing Concrete Strand
Szie:12.5mm,12.7mm ,15.2mm and 15.7mm
TypeL 1x7 wires
GB/T 5224-2014
ASTM A 416/A416M
MOQ: 25tons
Free sample available to test quality.
Terms of payment:
30% T/T in advance, 70% against the B/L copy.
Lead- time: within 15 days after receipt of Deposit.
Package: 2.5~3.2tons/ coil.
Physical Properties of PC Steel Wire Strand
7-Wire Uncoated Steel Strand for Prestressed Concrete as per ASTM A 416
| Min.Breaking Strength |
Nominal Dia. |
Dia. Tolerance |
Norminal Steel Area |
Nominal Weight |
Min. Breaking Load |
Min.Load at 1%Extension |
Min.Elongation Lo≥610mm |
0.7 G.U.T.S 1000hNorminal Relaxation |
| MPA | mm | mm | Mm2 | Kg/Km | KN | KN | % | % |
| 1860 | 9.53 |
+0.66,-0.15 |
54.84 | 432 | 102.3 | 92.1 |
≥3.5 |
≤2.5 |
| 11.11 | 74.19 | 582 | 137.9 | 124.1 | ||||
| 12.70 | 98.7 | 775 | 183.7 | 165.3 | ||||
| 15.24 | 140.0 | 1102 | 260.7 | 234.6 | ||||
| 17.80 | 190.0 | 1492 | 353.0 | 318.0 | ||||
| 2000 | 12.70 | +0.66,-0.15 | 98.7 | 775 | 197.4 | 177.7 | ≥3.5 | ≤2.5 |
| 15.24 | 140.0 | 1102 | 280.0 | 252.0 |
7-Wire Uncoated Steel Strand for Prestressed Concrete as per GB/T5224
| Min.Breaking Strength |
Nominal Dia. |
Dia. Tolerance |
Norminal Steel Area |
Nominal Weight |
Min. Breaking Load |
Min.Load at 1%Extension |
Min.Elongation Lo≥610mm |
0.7 G.U.T.S 1000hNorminal Relaxation |
| MPA | mm | mm | Mm2 | Kg/Km | KN | KN | % | % |
| 1860 | 9.50 | +0.30,-0.15 | 54.8 | 432 | 102 | 86.6 |
≥3.5 |
≤2.5 |
| 11.10 | 74.2 | 580 | 138 | 117 | ||||
| 12.70 |
+0.40,-0.20 |
98.7 | 775 | 184 | 156 | |||
| 15.20 | 140 | 1101 | 259 | 220 | ||||
| 15.70 | 150 | 1178 | 279 | 251 | ||||
| 17.80 | 191 | 1500 | 353 | 318 | ||||
| 1960 | 12.70 | +0.40,-0.20 | 98.7 | 775 | 193 | 174 | ≥3.5 | ≤2.5 |
| 15.20 | 140 | 1101 | 274 | 247 |
7-Wire Uncoated Steel Strand for Prestressed Concrete as per GB/T5224
| Min.Breaking Strength |
Nominal Dia. |
Dia. Tolerance |
Norminal Steel Area |
Nominal Weight |
Min. Breaking Load |
Min.Load at 1%Extension |
Min.Elongation Lo≥610mm |
0.7 G.U.T.S 1000hNorminal Relaxation |
| MPA | mm | mm | Mm2 | Kg/Km | KN | KN | % | % |
| 1860 | 9.50 | +0.30,-0.15 | 54.8 | 432 | 102 | 86.6 |
≥3.5 |
≤2.5 |
| 11.10 | 74.2 | 580 | 138 | 117 | ||||
| 12.70 |
+0.40,-0.20 |
98.7 | 775 | 184 | 156 | |||
| 15.20 | 140 | 1101 | 259 | 220 | ||||
| 15.70 | 150 | 1178 | 279 | 251 | ||||
| 17.80 | 191 | 1500 | 353 | 318 | ||||
| 1960 | 12.70 | +0.40,-0.20 | 98.7 | 775 | 193 | 174 | ≥3.5 | ≤2.5 |
| 15.20 | 140 | 1101 | 274 | 247 |
7-Wire Uncoated Steel Strand for Prestressed Concrete as per GB/T5224
| Min.Breaking Strength |
Nominal Dia. |
Dia. Tolerance |
Norminal Steel Area |
Nominal Weight |
Min. Breaking Load |
Min.Load at 1%Extension |
Min.Elongation Lo≥610mm |
0.7 G.U.T.S 1000hNorminal Relaxation |
| MPA | mm | mm | Mm2 | Kg/Km | KN | KN | % | % |
| 1860 | 9.50 | +0.30,-0.15 | 54.8 | 432 | 102 | 86.6 |
≥3.5 |
≤2.5 |
| 11.10 | 74.2 | 580 | 138 | 117 | ||||
| 12.70 |
+0.40,-0.20 |
98.7 | 775 | 184 | 156 | |||
| 15.20 | 140 | 1101 | 259 | 220 | ||||
| 15.70 | 150 | 1178 | 279 | 251 | ||||
| 17.80 | 191 | 1500 | 353 | 318 | ||||
| 1960 | 12.70 | +0.40,-0.20 | 98.7 | 775 | 193 | 174 | ≥3.5 | ≤2.5 |
| 15.20 | 140 | 1101 | 274 | 247 |
Raw Material Of PC Steel Wire Strand
Our raw material is high quality carbon steel hot rolled wire rod according to the standard GB/T4354-2008 .
The chemical composition of the steel conforms to the GB/T699-1999 standard.

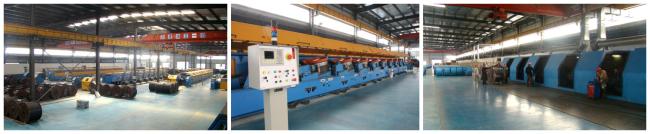

Production Workshop
There are 10 sets of drawing production line ,0 complete set of stranding lines.The produce process of PC Steel Wire Strand is following as below:
Drawing process:Surface treatment- Drying - Drawing - -Stranding-Tension Control--Heat treatment -Post Tension-Packing

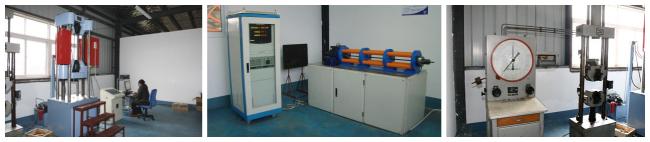

Testing Center
With comprehensive testing equipment and advanced testing techniques to every processing, we control processing quality timely to ensure all parameters with strict standard to finish qualified products.

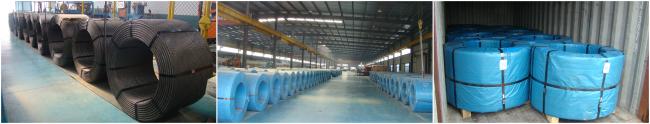

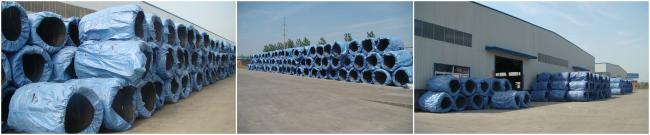

Packing and Loading

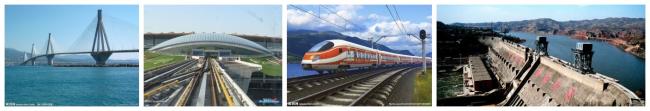

Application of PC Steel Wire Strand
