ISO 1.6mm Galvanized Metal Wire For Re - Drawing Wire To Produce Wire Rope
Price:
discuss
MOQ:
10tons
Delivery Time:
Negotiable
Brand:
Global
Product Description

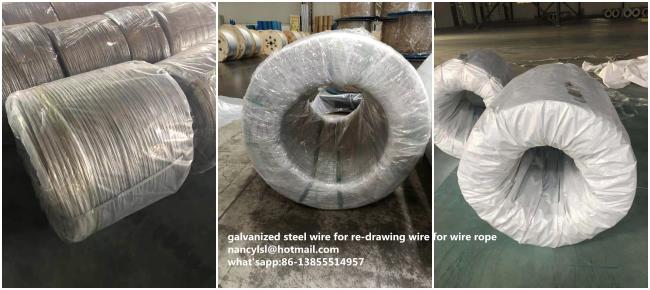

Galvanized steel wire for re-drawing wire to produce wire rope
| Nominal | Approximate | Nominal tensile strength MPa | |||
| diameter | mass | 1570 | 1670 | 1770 | 1870 |
| mm | kg/100m | Minimum breaking force kN | |||
| 0.6 | 0.19 | 0.31 | 0.32 | 0.34 | 0.36 |
| 1.2 | 0.75 | 1.22 | 1.3 | 1.38 | 1.45 |
| 1.5 | 1.17 | 1.91 | 2.03 | 2.15 | 2.27 |
| 1.8 | 1.69 | 2.75 | 2.92 | 3.1 | 3.27 |
| 2.1 | 2.3 | 3.74 | 3.98 | 4.22 | 4.45 |
| 2.4 | 3.01 | 4.88 | 5.19 | 5.51 | 5.82 |
| 2.7 | 3.8 | 6.18 | 6.57 | 6.97 | 7.36 |
| 3 | 4.7 | 7.63 | 8.12 | 8.6 | 9.09 |
| 3.3 | 5.68 | 9.23 | 9.82 | 10.4 | 11 |
| 3.6 | 6.77 | 11 | 11.7 | 12.4 | 13.1 |
| 3.9 | 7.94 | 12.9 | 13.7 | 14.5 | 15.4 |
| 4.2 | 9.21 | 15 | 15.9 | 16.9 | 17.8 |
| 4.5 | 10.6 | 17.2 | 18.3 | 19.4 | 20.4 |
| 4.8 | 12 | 19.5 | 20.8 | 22 | 23.3 |
| 5.1 | 13.6 | 22.1 | 23.5 | 24.9 | 26.3 |
| 5.4 | 15.2 | 24.7 | 26.3 | 27.9 | 29.4 |
| 6 | 18.8 | 30.5 | 32.5 | 34.4 | 36.4 |
| 6.6 | 22.7 | 36.9 | 39.3 | 41.6 | 44 |
| 7.2 | 27.1 | 43.9 | 46.7 | 49.5 | 52.3 |
| 7.8 | 31.8 | 51.6 | 54.9 | 58.2 | 61.4 |
| 8.4 | 36.8 | 59.8 | 63.6 | 67.4 | 71.3 |
| 9 | 42.3 | 68.7 | 73 | 77.4 | 81.8 |
| 9.6 | 48.1 | 78.1 | 83.1 | 88.1 | 93.1 |
| 10.5 | 57.6 | 93.5 | 99.4 | 105 | 111 |
| 11.5 | 69 | 112 | 119 | 126 | 134 |
| 12 | 75.2 | 122 | 130 | 138 | 145 |
| Remarks: Minimun aggragate breaking force = minimum breaking force x 1.111 | |||||
