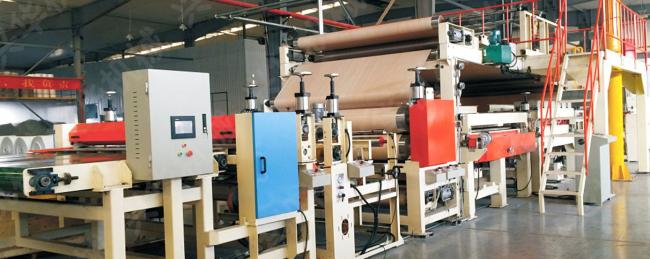

Glass Fiber Mat Nonwoven Production Line , Vehicle GMT Forming Machine

Description:

1) Specification: Machine can be made from width 220cm to 270cm

2) Property: International standard

3) Heating mode: Gas direct heating or conduction oil heating.

4) Oven: Hot-air circulation oven

5) Operating control system: Siemens ( including PLC, touch screen, converter, drive and hot air circulation high-temp resistant motor)

6) Temperature control system: optional

7) Process route: Craft 1:Debatching→Store cloth→Stenter→Composite laminate →Stenter(by carpet belt) →Hot pressing→Cold pressing→Cut →Feed

Craft 2: Debatching→Store cloth→Stenter→Cold roll pressing→Composite laminate→Hot plate pressing→Cold plate pressing→Slitting→Cut→Feed

Craft 3: Debatching→Store cloth→Stenter(by cylinder net)→Dusting powder →Stenter →Put cloth →Composite→Cooling→Trimming →Cut→Feed

Applications:

The machine is mainly for non-woven glass fiber mat in the automobile industry by the high temperature stentering, composite laminating (or dusting powder), hot pressing, cold plating, cutting pieces and more.

Competitive Advantage:

1) International standard.

2) Applicable non-woven glass fiber mat in the automobile industry

3) This machine can reduce your costs and improve production efficiency.
