Low Compression Polyurethane Round Belt For Newspaper Conveying Hardness 85A

Price Negotiable
Price: Negotiation
MOQ: 10 rolls
Delivery Time: Shipped in 15 days after payment
Brand: YUAN AO
Product Description

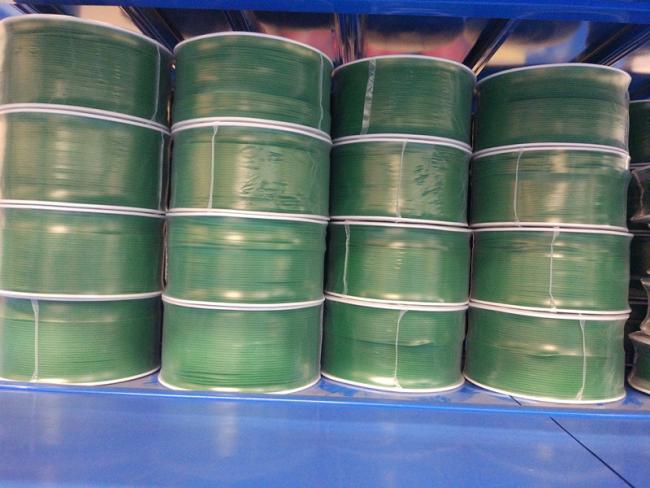

Polyurethane (PU) Round Belt

a: diameter: 2mm--30mm

b: surface: vivid color with glossy surface; neat granule spread fairly for rough surface type



Applications:
--------------------------------------------------------------------------------
PU Rubber Round Belt is widely used in transmission and distribution of the following industry.

--- Newspaper conveying,
--- Packing machines,
--- Ceramic and stoneware processing plants, such as glazing Lines, transmission lines, polishing line etc.
--- Floor and roof tiles conveying,
--- Wood Working machineries,
--- Textile machines,
--- Paper industry machines,
--- Food grading machines, other food processing machines.

Features:
--------------------------------------------------------------------------------
PU Rubber Round Belt has many advantages as follow: Is widely used in transmission and distribution products for the textile, clothing, food, packaging, printing, machinery, electronic, glass, chemicals, automobiles, beverages, furniture, toys, paper and other industries; Especially in the following industry.


1) Outstanding abrasion resistance
2) High tensile and tear strength
3) Resistance to oils, fuels, and oxygen
4) Fabulous weatherability and high impact resistance
5) Low compression set



Wuxi Robert Industrial belt Co., Ltd. is located in WUXI city JiangSu province China,which is only 100KM away from SHANGHAI city.With convenient transprotation,our factory is easily accessible. Our factory has a staff of 90 workers, including 11 engineers who are technology professors in belts field guaranteeing good quality of our belts.And based on 12 hours working time ,our monthly production is 130,000 SQM,so,we can meet requirements of orders of any production amount.



Items NO. Least radius of gyration Stretching rate Maximum tensile rate Hardness Length of rolled
DIA(mm) In mm % Kg Lbs Shore( A) Length of rolled
2mm 0.79 20 1.5-3% 0.3 0.7 95 400
2.5mm 0.87 22 1.5-3% 0.4 0.9 95 400
3mm 0.98 25 1.5-3% 0.7 1.6 90 400
3.5mm 1.18 30 1.5-3% 0.95 2.1 90 400
4mm 1.38 35 1.5-3% 1.2 2.7 90 200
5mm 1.57 40 1.5-3% 2.0 4.3 90 100
6mm 1.97 50 1.5-3% 3.2 7.0 90 100
7mm 2.17 55 1.5-3% 4.1 9.0 90 100
8mm 2.56 65 1.5-3% 5.0 11.0 90 100
9mm 2.95 75 1.5-3% 6.8 15.0 90 50
10mm 2.95 75 1.5-3% 7.7 17.0 90 50
12mm 3.94 100 1.5-3% 12.2 27.0 90 30
15mm 4.72 120 1.5-3% 17.7 39.0 90 30
18mm 5.71 145 1.5-3% 25.4 56.0 90 30
20mm 6.30 160 1.5-3% 31.3 69.0 90 30
