High Tensile / Tear Strength Polyurethane Round Belt For Machine Transmission
Polyurethane Round Belt of High tensile and tear strength for Machine Transmision
Advantages:
Fast joining
Abrasion Resistance
Chemical, Oil & Water Resistant
Excellent flexible
High lode capacity
Easily Cleaned
Long Operating life
Minimum machine down time
Installation without dismantling the conveyor
Application:
Ceramic tiles & roof tiles
Packing Machines
Woodworking Machines
Food Industry
Paper & Printing Industry
Textile Industries
Can onveyors
Glass Industries
Roller Conveyors
Canneries
Garments Industries
Temperature range -35°C - 80°C
Shore A hardness range 80A - 98A
With excellent resistance to flex, abrasion resistance, easy jointed and other characteristics. Widely used in textile, packaging, printing, machinery, electronic, glass, chemicals, ceramics and other industries, especially in the ceramic industry, widely used in the facilities line the glaze, polishing lines, and transmission line.
Round Belt:
Round Belt Dia. is from 2mm to 30mm
Our company With years of knowledge and affluent industrial expertise, we are instrumental in presenting to our patrons an all-inclusive collection of Polyurethane Round Section Belts. Making use of supreme class basic material along with futuristic tools and machinery, these presented products are made with perfection. To add, these offered products are reviewed sternly prior shipping

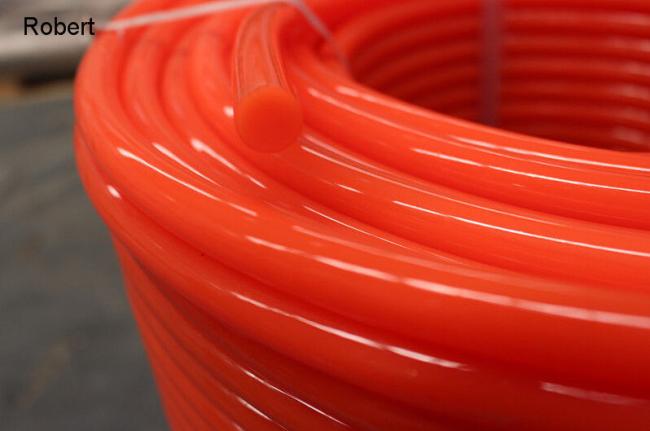

Polyurethane (PU) Round Belt
| Items NO. | Least radius of gyration | Stretching rate | Maximum tensile rate | Hardness | Length of rolled | ||
| DIA(mm) | In | mm | % | Kg | Lbs | Shore( A) | Length of rolled |
| 2mm | 0.79 | 20 | 1.5-3% | 0.3 | 0.7 | 95 A | 400 |
| 2.5mm | 0.87 | 22 | 1.5-3% | 0.4 | 0.9 | 95A | 400 |
| 3mm | 0.98 | 25 | 1.5-3% | 0.7 | 1.6 | 90A | 400 |
| 3.5mm | 1.18 | 30 | 1.5-3% | 0.95 | 2.1 | 90A | 400 |
| 4mm | 1.38 | 35 | 1.5-3% | 1.2 | 2.7 | 90A | 200 |
| 5mm | 1.57 | 40 | 1.5-3% | 2.0 | 4.3 | 90A | 100 |
| 6mm | 1.97 | 50 | 1.5-3% | 3.2 | 7.0 | 90A | 100 |
| 7mm | 2.17 | 55 | 1.5-3% | 4.1 | 9.0 | 90A | 100 |
| 8mm | 2.56 | 65 | 1.5-3% | 5.0 | 11.0 | 90A | 100 |
| 9mm | 2.95 | 75 | 1.5-3% | 6.8 | 15.0 | 90A | 50 |
| 10mm | 2.95 | 75 | 1.5-3% | 7.7 | 17.0 | 90A | 50 |
| 12mm | 3.94 | 100 | 1.5-3% | 12.2 | 27.0 | 90A | 30 |
| 15mm | 4.72 | 120 | 1.5-3% | 17.7 | 39.0 | 90A | 30 |
| 18mm | 5.71 | 145 | 1.5-3% | 25.4 | 56.0 | 90A | 30 |
| 20mm | 6.30 | 160 | 1.5-3% | 31.3 | 69.0 | 90A | 30 |
