PVC 1342khz FDXB Middle Range Distance Eartag Cattle RFID Reader Compatible with Support Card Proximity Cards Feature

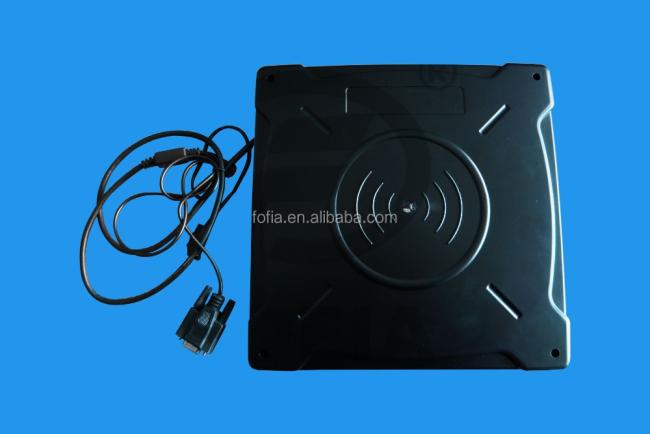

RLF02A is a 134.2KHz RFID long-distance reader which is specially designed for reading the animal ID tags with ISO11784/ISO11785 Standard. After reading the tag, it can directly output the information to the PC by format of RS232. It is usually used at the livestocks passages and enclosures to do the work like automatic feeding, weighing, milking, butchering and to do the automatic identification about the tags during the breeding process.
1. Specifications:
ModelRLF102A
Dimensions 260length*260height*35thicknessm/m
Operating Frequency AM 134.2 KHz
2. Technical Parameter:
Operating voltage: Vcc=12V
Electric current: 360mA (12V)
3. Specifications:
| PIN | NAME | I/O | SYMBLE | MIN | TYP | MAX | DESCRIOTION |
| Red | VCC | I | VCC | 10.5V | 12V | 13.5V | Power |
| Black | GND | I | VSS | - | - | - | Power |
| Yellow | PROGRAM1 | I | Vi-H Vi-L | Vcc-0.2V - | Vcc GND | Vcc+0.2V Vss+0.2V | Select mode |
| Purple | PROGRAM2 | I | Vi-H Vi-L | Vcc-0.2V - | Vcc GND | Vcc+0.2V Vss+0.2V | Select mode |
| Grey | - | - | - | - | - | - | - |
| Green | - | - | - | - | - | - | - |
| Brown | - | - | - | - | - | - | - |
| White | - | - | - | - | - | - | - |
| Blue | RS232 | O | ±5V | ±8V | RS232 output | ||
| Orange | For Customer | I | Vi-H Vi-L | Vcc-0.2V - | Vcc GND | Vcc+0.2V Vss+0.2V | Connected GND to light blue LED |
Wuxi Fofia Technology Co., Ltd will develop into a company that can provide complete solutions including IC card, equipment, application software and system integration. We’re committed to the development and promotion of animal identification technology. We’ll win customers’ trust with our high-quality products and first-class service. We warmly welcome the direct users of food safety source-tracing project implementation and system integrators to cooperate with us. We’ll try our best to provide the best solution of food safety & source-tracing for you.

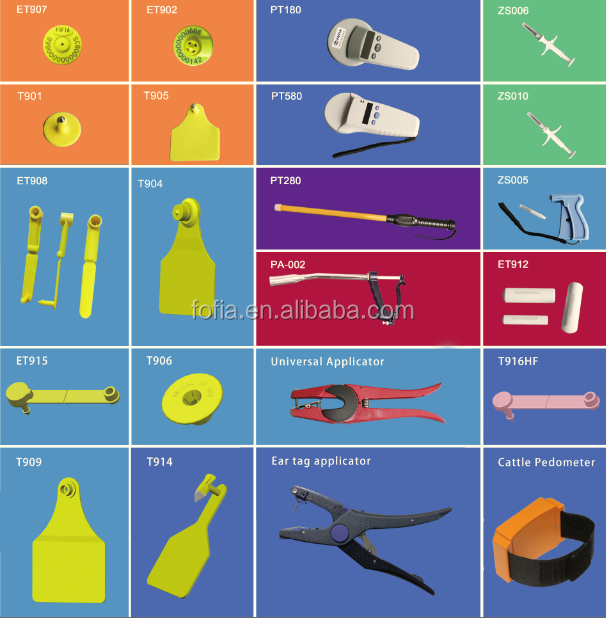

Related products:
ICAR Website screenshot:

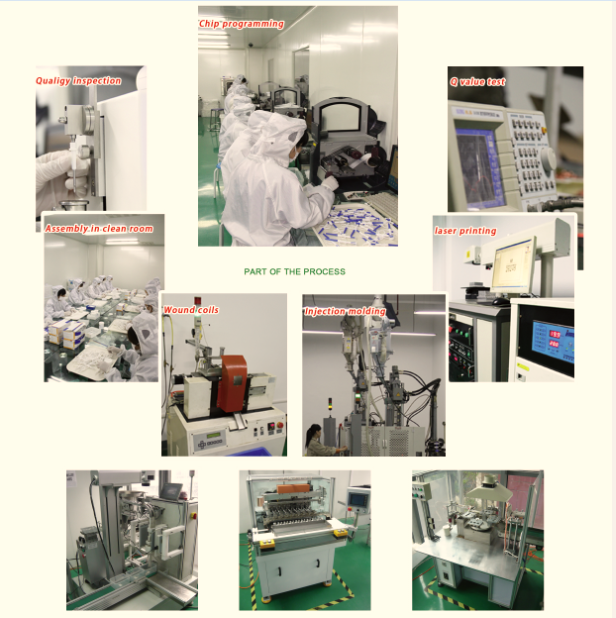

Wuxi Fofia Technology Co., Ltd is a leading supplier of animal identification products in Asian and Pacific area. We are a professional manufacturer with 3000 square meters workshop, 100 workers and 13 years’ experience. The products are RoHs, CE certificated. We are located in Wuxi, a beautiful city about one hour reach Shanghai port. This is why we can supply top-quality products and the first-class service to every valued customer.
Our certificate:
Overseas Exhibition:
Q1. Are you a factory or trading company?
We are a professional manufacturer with 3000 square meters workshop, 100 workers and 13 years’ experience.
We are located in Wuxi, a beautiful city about one hour reach Shanghai port. Welcome to visit our factory.
Q2. Are your products the lowest price?
We take the quality into consideration prior. The price is based on the quality level and the order quantity. Discount is available from us if the order is big. As from a manufacturer, you’ve got the best price other than trading company.
Q3. All products have a warranty?
Yes, we supply 1 to 5 years warranty for our products.
Q4. What is the transportation?
Mainly by Express, we have good discount with FedEx, DHL and TNT. You can also appoint your own forwarder.
Q5. If the goods is damaged in transit, how to do?
We use stable package, the possibility of the goods damaged during the shipping is very small. If it happens, we will ask the courier company to be responsible for it and pay you the loss.
Q6. Can we customize package pouch of the microchip with our logo, etc.?
Yes, we support OEM, all the color, logo and package can be customized.
