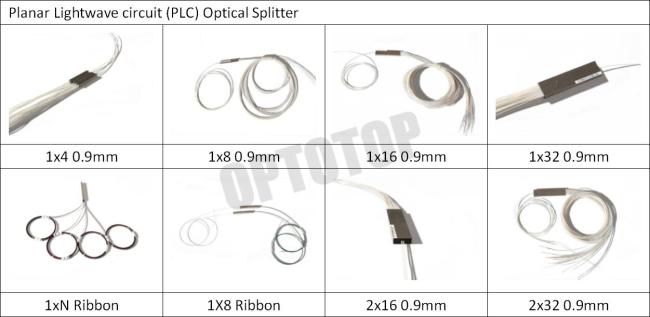

Single Mode Fiber Optic PLC Splitter 2mm/3mm SC/LC/FC connector
Single Mode Mini-distribution 1X16 PLC Splitter 0.9mm LC/APC Connector In Packed (FTTH, CATV, telecom)
Applications Features
Telecommunication system Low excess loss
Access network Low PDL
FTTH High reliability
PON
CATV
Certification and Compliance
GR-1209-CORE Requirements for Passive Optical Components.
GR-1221-CORE Reliability Assurance Requiremnts for Passive Optical Components.
GR-326-CORE Requirements for Single Mode Optical Connectors and Jumpers Assemblies.
TIA-604 Fiber Optic Connector Intermateability Standard.
ROHS Directive on Restriction of Hazardous Substances
Single Mode Planar Lightwave Circuits Splitter Description
The Single Mode Planar Lightwave Circuits Splitter based on real time 6 DOF optical alignment monitoring and feedback technologies. The devices are designed and manufactured to meet Telcordia GR-1221-CORE requirements and RoHS compliant.
1xN/2xN PLC Splitters (without connects)
| Parameter | 1x4 | 1x8 | 1x16 | 1x32 | 1x64 | 2x4 | 2x8 | 2x16 | 2x32 |
| Operating wavelength (nm) | 1260~1650 | ||||||||
| Port wavelength range (nm) | 1310±20; 1490±10; 1550±20 | ||||||||
| Insertion loss @ 1310 nm/1550 nm | 7.1 | 10.5 | 13.6 | 16.8 | 20.5 | 7.4 | 10.8 | 14.5 | 17.5 |
| Uniformity (dB) | 0.5 | 0.8 | 1 | 1.2 | 1.8 | 1.2 | 1.5 | 1.8 | 2 |
| PDL @ 1310/1550 nm (dB) | ≤0.3 | ||||||||
| Return loss @ 1310/1550 nm (dB) | ≤55 | ||||||||
| Input power (mW) | 250 max | ||||||||
| Operating temperature (℃) | -40~+85℃ | ||||||||
| Storage Temperature (℃) | -40~+85℃ | ||||||||
| Fiber Type | Corning G657A1 | ||||||||
Package dimensions
| WxHxL(mm) | PORT | |||
| 100x80x10 | 1x4 | 1x8 | 2x4 | 2x8 |
| 120x80x18 | 1x16 | 1x32 | 2x16 | 2x32 |
| 140x114x18 | 1x32 | 2x32 | 1x64 | |
