OFNR & OFNP Corning Fiber Optic Patch Cord 250um/600um/900um SC / LC / FC / ST Connectors
LC/SC/FC/MU/MPO/ST Connector Fiber Optic Patch Cord CORNING G652D/G657A Cable, OM1/2/3/4
EX: OFC-S-LC-LA-30-1-0.5
Feature

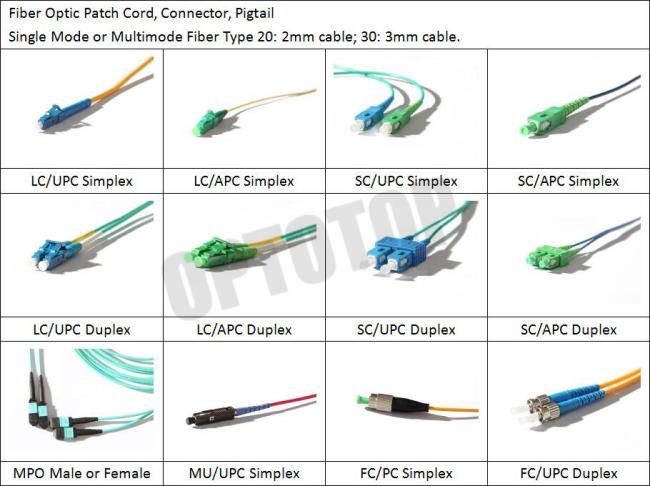

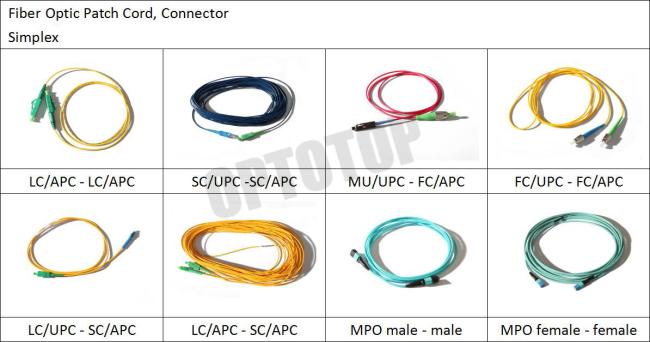

LC,SC,FC,ST,MPO, fiber optic patch cord
OEM patch cords
Telcordia GR-326-4 core compliant
CE, Rohs, UL, REACH.
High quality and fast delivery
Small trail order is avalable
Low insertion loss and back reflection loss
Good echangeabilityGood Durability
High temperature stability
Product Description
Fiber optic patch cord ,Precise connector, Customized length, Excellent mechanical capability, insertion loss<0.2dB, Good durability and exchangeability, Compliant with TIA/EIA and IEC standard
Application
CATV
Active dvice termination
Telecommunication networks
Metro
Local Area Networks(LANs)
Data Processing networks
Test Equipment
Premise installations.
Wide Area Networks(WANs)
Specifications
| Parameter | Unit | Index | |||
| End-face type | PC | UPC | APC | ||
| IL | dB | SM: ≤0.3; MM≤0.1 | |||
| Repeatability | dB | ≤0.1 | |||
| Interchangeability | dB | ≤0.2 | |||
| RL | SM | dB | ≥50 | ≥50 | ≥50 |
| MM | dB | ≥36 (without APC connector) | |||
| Mating times | ＞1000 | ||||
| Operating temperature | ℃ | -40~ +80 | |||
Ordering Information
| OFC | -X | -XX | -XX | -XX | -XX | -XX |
|
S: simplex D:duplex |
LA:LC/APC LC:LC/UPC LP:LC/PC |
LA:LC/APC LC:LC/UPC LP:LC/PC |
09:0.9mm 20:2.0mm 30:3.0mm |
0:G652D 1:G657A 2:50/125 3:62.5/125 4:others |
0.5:0.5m 1.0:1.5m 10:10.0m |
|
| Fiber mode | Connector Type | Connector Type | Cable Diameter | Fiber Type | Fiber Length |
EX: OFC-S-LC-LA-30-1-0.5
Packing & Shipment
Packaging : plastic bag & caron
Shipping: International Express: Fedex, DHL, UPS, TNT and EMS.If you have another preferred carrier, please notify us in advance.
FedEx Overnight: It will take 1-3 business days (weekends and holidays excepted) for delivery.
DHL: It will take 2-4 business days (weekends and holidays excepted) for delivery. For Spain, Italy, Brazil and some other countries, items will take longer time to arrive due to customs clearance period.
Service
One to one, heart to heart service. We look forward the long-term continuing services for you, not just one or two times cooperation.
Perfect after-sales service :24-hour designated telephone number, e-mail and customer manager.
Q: Are you factory or trading company?
A: No. We are professional manufacturer in this filed since 2003.
Q: What kind products do you have?
A: FBT & PLC splitter, Fiber connectors, attenuators, adapters and isolators...etc.
Q: Do you provide free samples?
A: Yes. Free sample on request for your test. We will send you the free sample if you pay the shipping cost.
