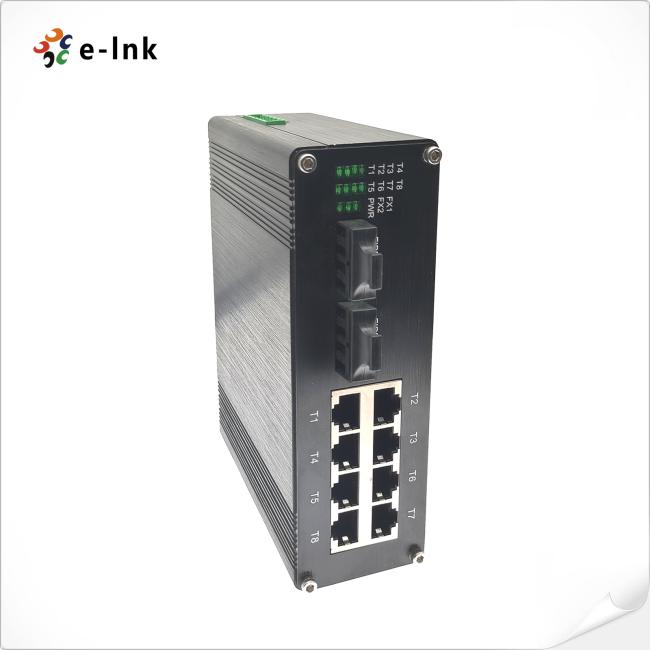

Din Rail Ethernet POE Switch 8 Ports 10 100Base-T 2 Ports 100BASE-FX Fiber Ethernet Switch

Standards:

IEEE802.3 10BASE-T

IEEE802.3u 100BASE-TX/FX

IEEE 802.3az Energy Efficient Ethernet (EEE)

IEEE802.3x Flow Control

Forward & Filtering Rate:

14,880pps (10Mbps)

148,800pps (100Mbps)

Packet Buffer Memory:

512K bits

Processing Type:

Store-and-Forward

Address Table Size:

1024 MAC Addresses

Input Power:

12~58VDC, Redundant Power (6-pin Terminal Block)

Power Consumption:

5W Max.

Protection:

Power Input Overload:

Automatic Resettable

Reverse Polarity:

Present

LED Indicators:

Power:

Power1, Power2 Status

Ethernet (Per Port):

Link/Activity

Fiber:

FX1, FX2

Dimensions (WxDxH):

150 x 110 x50 mm

Weight:

0.6Kg

Casing:

Aluminum Case

Mounting Options:

DIN-Rail / Wall-mount

Model

Description

LNK-IMC208

Industrial Ethernet Switch: 8-Port 10/100Base-TX + 2-port 100BASE-FX Fiber, Multimode, Dual Fiber, SC, 2KM

LNK-IMC208-20

Industrial Ethernet Switch: 8-Port 10/100Base-TX + 2-port 100BASE-FX Fiber, Single Mode, Dual Fiber, SC, 20KM

LNK-IMC208S-20

Industrial Ethernet Switch: 8-Port 10/100Base-TX + 2-port 100BASE-FX Fiber, Single Mode, Single Fiber, SC, 20KM

LNK-IMC208F-20

Industrial Ethernet Switch: 8-Port 10/100Base-TX + 2-port 100BASE-FX Fiber, Single Mode, Single Fiber, FC, 20KM

LNK-IMC208-SFP

Industrial 8-port 10/100BASE-T + 2-port 100BASE SFP Ethernet Switch

SFP Options

► SFP option. Please select your SFP on our SFP Options Page

► SFP module is to be purchased separately.

Mounting Options

► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.

Power Options

► 24W/1A 24VDC DIN-Rail Power Supply. Open Wire for Terminal Block.

► Power Supply is to be purchased separately.
